Swim in a clean pool

This makes swimming in your pool even more enjoyable: in crystal-clear and sparkling pool water. The filter balls of the powerful pool filter system, with a circulation rate of up to 3,900 l/h, ensure perfect filtration performance while remaining easy to use. 700 g of filter balls are equivalent to 25 kg of filter sand – making them lighter and more efficient than conventional filter media. Powerful filter pump with a circulation capacity of 3,900 l/h. For pools with a water capacity of up to 19,000 l – also suitable for saltwater pools. New & effortless: Filtration with balls, not sand (sand operation possible). Perfect filtration results with easy operation. Connectable to all standard above-ground pools. Innovative technology for optimal cleaning results. You can use the filter in any standard swimming pool with a water capacity of up to 19,000 liters. Because the Active Balls+ filter system is equipped with a 7-way valve, the pump is also suitable for use in saltwater pools (max. 5 g salt/l). All you need is a standard hose connection with a diameter of 32/38 mm and a 230 V socket. The water temperature must not exceed 35 °C. Clean pool water all season long: For clean fun: To ensure you can enjoy your time in the pool all summer long, the pool water should be circulated regularly. Look forward to refreshing moments in your swimming pool with purified water – the Active Balls+ pool filter system makes it possible. Features: Powerful filter system for pools up to 19,000 l water capacity. Non-self-priming pump. Maximum water temperature 35 °C. Base plate for pump mounting. Innovative filter balls for easy operation and perfect filtration. Technical data: Max. circulation capacity: 3,900 l/h. Sound level: < 70 dB(A). Power supply: 220–240 V, 50 Hz. Power: 200 W

Weight/Dimensions:

• W x H x D: approx. 45 x 50 x 31 cm
• Approx. 7.3 kg

Scope of delivery:

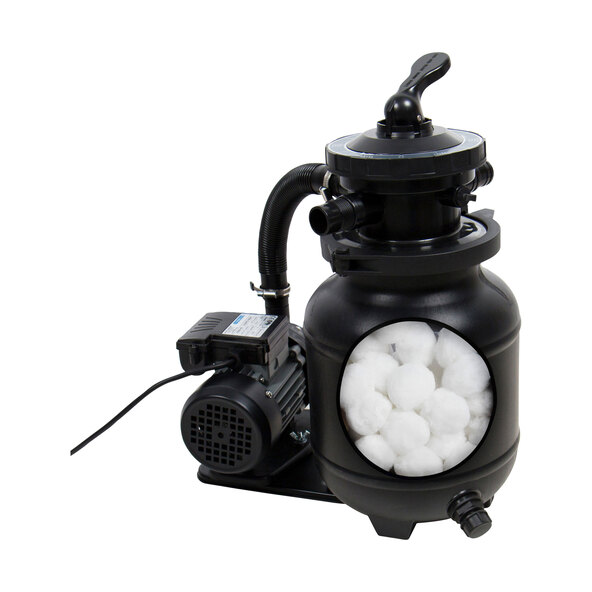

• Active Balls+ filter system
• Filter balls
• Operating instructions
• Warranty card

Device components:

• Drainage outlet
• Ventilation screw
• Pump/suction line connection
• Pressure line connection
• Return line connection
• Backwash line connection
• Valve lever

Operating instructions
