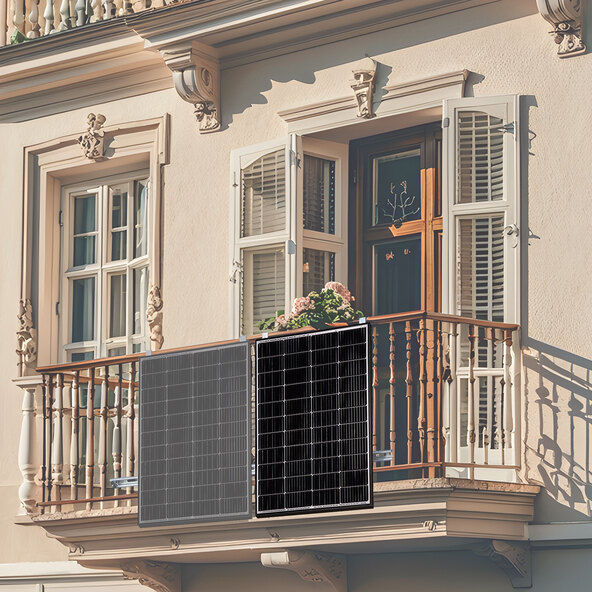

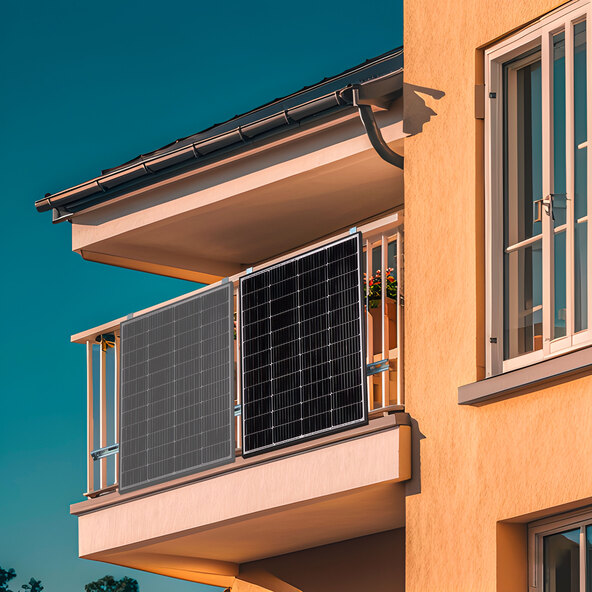

Additional solar energy for your balcony power plant
The 170W balcony power plant expansion module allows you to expand your existing balcony power plant and generate more solar energy. The set includes a robust and weatherproof solar module with an aluminum frame, mounting hardware, and two Y-cables.
Features:
- Robust and weatherproof solar module with aluminum frame
- Expansion of existing systems
- Includes Mounting material
- Technical data, PV module:
- Nominal power: 170 Wp
- Voltage (Max./No-load): 25.21 V / 31.03 V
- Current (Max./Short circuit): 6.77 A / 7.0 A
- Cell efficiency: approx. 20.5 %
- Connection cable: MC4 compatible, 2 x 2.5 mm²
- Ambient temperature range: -40 to 85 °C
- Max. System voltage: 1,500 V DC Protection class: PV module (connection box) IP68 Dimensions/Weight: W x H x D: approx. 77.5 x 107 x 3.5 cm 12.1 kg

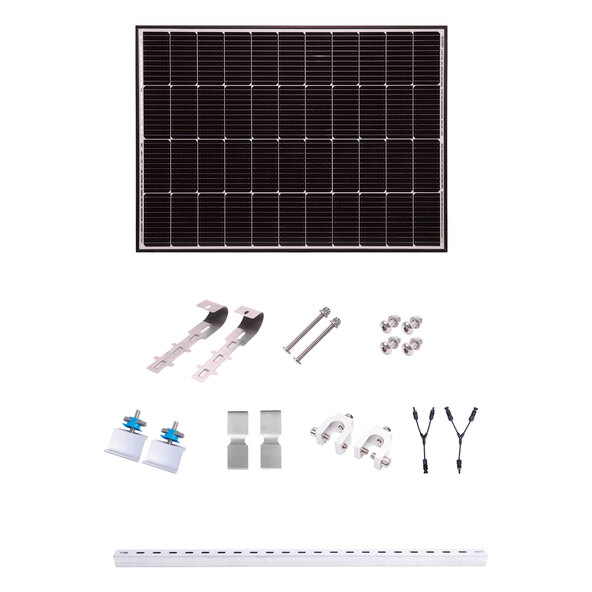

Scope of delivery:
- Yard Force balcony power plant expansion module, 170 W
- 2 x Y-cables
- 1 x mounting kit
- 1 x screw set for attaching the inverter to the solar module
- 1 x screw set for attaching the inverter to the rail
Instruction manual
