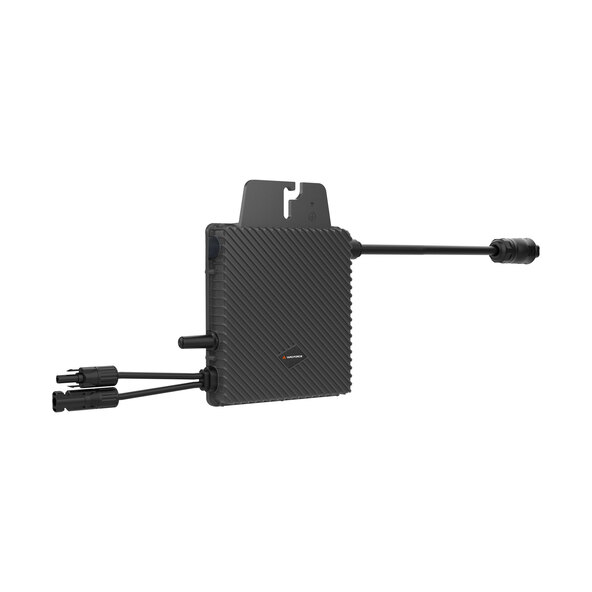

Sustainable energy for your balcony. The 170W balcony power plant starter set offers you a simple way to feed solar energy directly into your home's electrical grid. The set includes a robust and weatherproof solar panel with an aluminum frame, an inverter with integrated Wi-Fi module, a mains connection cable, and mounting hardware. It is ready to use immediately and can be expanded with a second solar panel. Quick connection is via a standard Schuko plug. Features: Ready-to-use starter set with all necessary components. Robust and weatherproof solar panel with aluminum frame. Inverter with integrated Wi-Fi module. Includes: Mains connection cable and mounting material Direct power feed into the house grid via Schuko plug Expandable with a second solar module Rapid shutdown function in case of mains failure according to VDE standard 4105 Technical data, PV module: WLAN (2.4 GHz, IEEE 802.11/b/g/n) Connections: 1 x 2 MC4 compatible, 1 x 230 V output Display and control: LED status indicator Protection class: IP 68 (PV module (junction box)), IP67 (inverter)
- Nominal power: 170 Wp
- Voltage (Max./No-load): 25.21 V / 31.03 V
- Current (Max./Short circuit): 6.77 A / 7.0 A
- Cell efficiency: approx. 20.5 %
- Connection cable: MC4 compatible, 2 x 2.5 mm²
- Ambient temperature range: -40 to 85 °C
- Max. System voltage: 1,500 V DC Technical data, inverter: Input power (recommended): 300-500 W DC input voltage (max./operating range): 60 V / 16-60 V DC short-circuit current (max.): 20 A DC input current (max.): 14 A AC output power: 300 W AC output current (max.): 1.45 A AC nominal voltage and frequency range: 230 V, 50 Hz Frequency range (extended): 47.5-51.5 Hz Efficiency: approx. 96.5% (CEC), approx. 99.9% (MPPT)
- Power consumption without sunlight: 50 mW
- Ambient temperature range: -40 to 65 °C
Dimensions/Weight:
- W x H x D: approx. 77.5 x 107 x 3.5 cm
- Approx. 14.5 kg

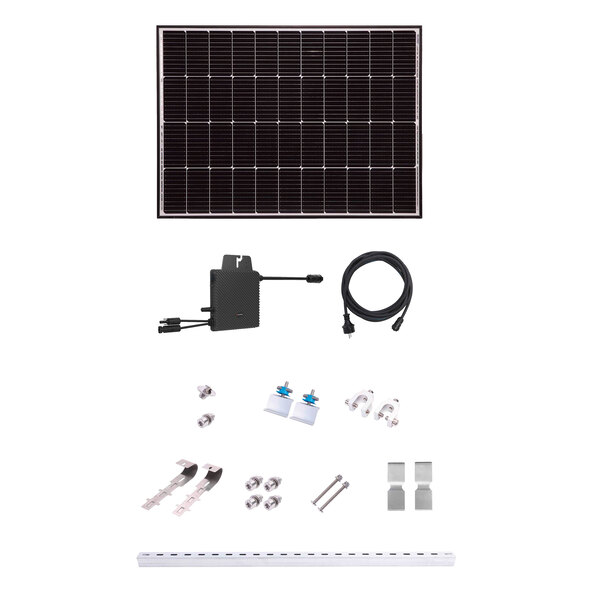

Scope of delivery:
- YARD FORCE Balcony Power Plant Starter Set, 170 W
- 1 x Solar panel
- 1 x 5 m connection cable H07RN-F 3G 1.0 mm², with connector and VDE plug (IP44)
- 1 x Mounting set
- 1 x Screw set for attaching the inverter to the solar module
- 1 x Screw set for attaching the inverter to the rail
- Operating instructions
