Flexible Mounting Options

The universal mounting bracket for solar panels allows for vertical or horizontal installation. The vertical tilt angle is adjustable in increments from 87° to 30° to ensure optimal alignment. The bracket is made of robust materials such as stainless steel and galvanized steel.

Features:

• Suitable for vertical or horizontal mounting
• Vertical tilt angle adjustable in increments from 87° to 30°
• Max. panel size: approx. 172.2 x 113.4 cm
• Max. panel weight: approx. 20.8 kg
• Max. Installation height: approx. 20 m
• Material, screws and nuts: stainless steel
• Material, mounting hooks: stainless steel
• Material, clamping strip: galvanized steel Q235
• Material, telescopic poles (inside/outside): galvanized steel Q235

Dimensions/Weight:

• Approx. 5.7 x 110 cm
• Approx. 5.3 kg

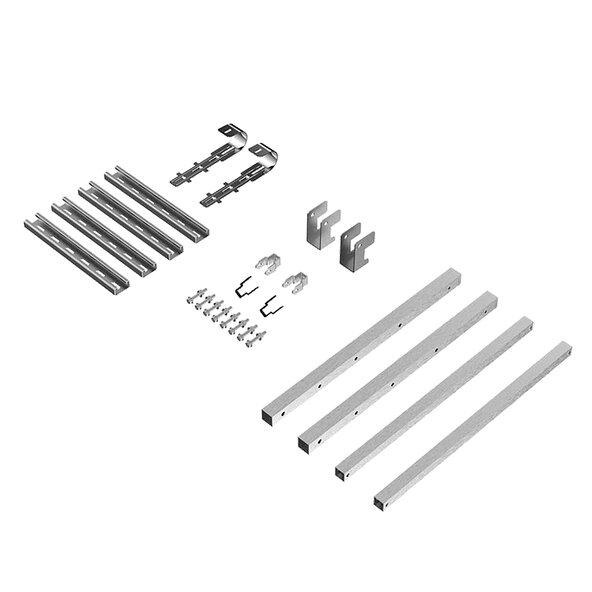

Scope of delivery:

• Yard Force Balcony Power Plant Universal Mounting Bracket for Solar Panel
• Mounting material
• • 2 x Mounting hooks
  • 2 x Telescopic poles (outer)
  • 2 x Telescopic poles (inner)
  • 2 x Anchor brackets
  • 2 x Hinges (panel)
  • 2 x Hinges (balcony)
  • 2 x Mounting plates
  • 4 x Clamping rails
  • 2 x M8 x 65 mm screws, nuts, washers
  • 2 x M8 x 60 mm screws, nuts, washers
  • 2 x M8 x 45 mm screws, nuts, washers
  • 2 x M8 x 20 mm screws, nuts
  • 2 x M6 x 65 mm screws, nuts, washers
  • 4 x M6 x 18 mm screws, nuts, washers
  • 1 x 5 mm Allen key
  • 1 x 6 mm Allen key
  • 1 x 10/13 mm wrench

Original instructions
