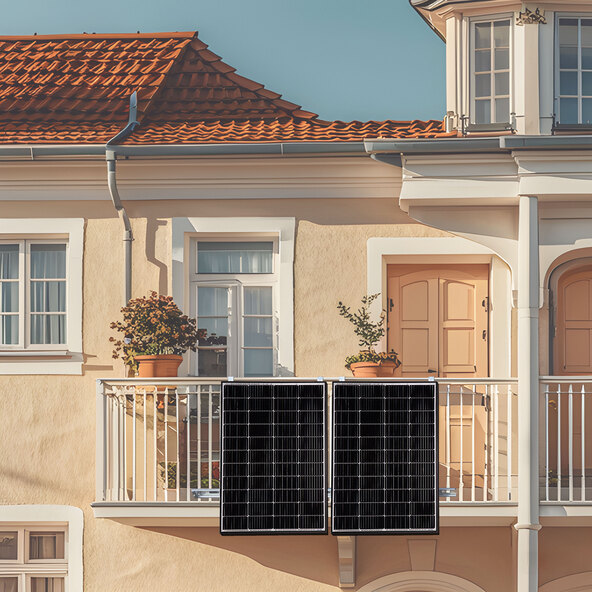

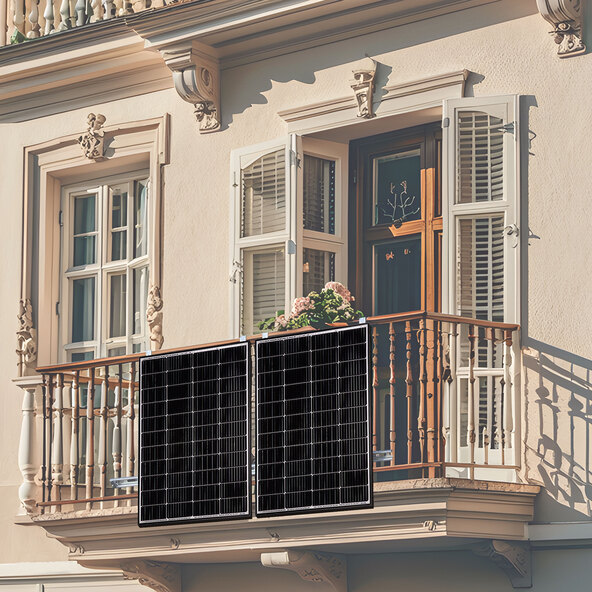

Solar energy for your balcony

The 2x 170 W Dual Starter Set balcony power plant allows you to feed solar energy directly into your home's electrical grid. It includes two robust and weatherproof solar panels with aluminum frames, an inverter with integrated Wi-Fi module, a mains connection cable, Y-cable, and mounting hardware. The set is ready to use immediately and can be quickly connected via a standard household plug.

Features:

• Ready-to-use complete set with all necessary components
• Two robust and weatherproof solar panels with aluminum frames
• Inverter with integrated Wi-Fi module
• Includes Mains connection cable, Y-cable and mounting material
• Direct power feed into the house grid via Schuko plug
• Quick shutdown function in case of mains failure according to VDE standard 4105
• Technical data, PV module:
• Nominal power: 170 Wp
• Voltage (Max./No-load): 25.21 V / 31.03 V
• Current (Max./Short circuit): 6.77 A / 7.0 A
• Cell efficiency: approx. 20.5 %
• Connection cable: MC4 compatible, 2 x 2.5 mm²
• Ambient temperature range: -40 to 85 °C
• Max. System voltage: 1,500 V DC Technical data, inverter: Input power (recommended): 300-500 W DC input voltage (max./operating range): 60 V / 16-60 V DC short-circuit current (max.): 20 A DC input current (max.): 14 A AC output power: 300 W AC output current (max.): 1.45 A AC nominal voltage and frequency range: 230 V, 50 Hz Frequency range (extended): 47.5-51.5 Hz Efficiency: approx. 96.5% (CEC), approx. 99.9% (MPPT)
• Power consumption without sunlight: 50 mW
• Ambient temperature range: -40 to 65 °C
• WLAN (2.4 GHz, IEEE 802.11/b/g/n)
• Connections: 1 x 2 MC4 compatible, 1 x 230 V output
• Display and control: LED status indicator
• Protection class: IP 68 (PV module (junction box)), IP67 (inverter)

Dimensions/Weight:

• Per panel, W x H x D: approx. 77.5 x 107 x 3.5 cm
• Approx. 26.8 kg

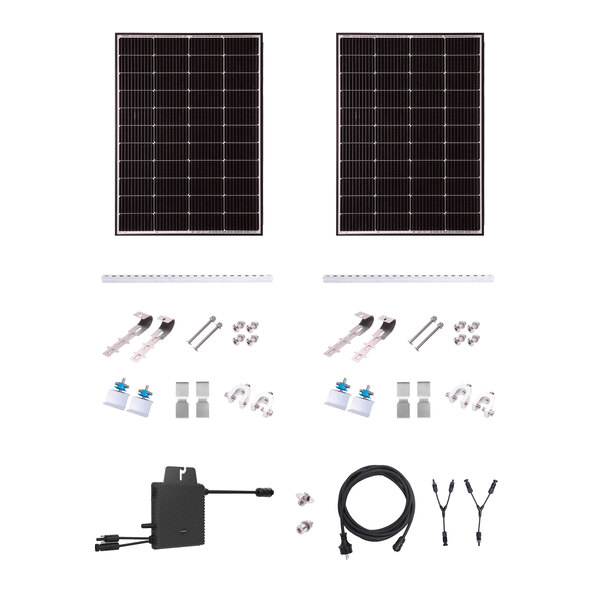

Scope of delivery:

• YARD FORCE Balcony Power Plant Dual Starter Set, 2 x 170 W
• 2 x Solar panels
• 1 x 5 m connection cable H07RN-F 3G 1.0 mm², with connector and VDE plug (IP44)
• 2 x Y-cables
• 2 x Mounting kits
• 1 x Screw set for attaching the inverter to the solar module
• 1 x Screw set for attaching the inverter to the rail

Instruction manual
