Environmentally friendly energy for your home

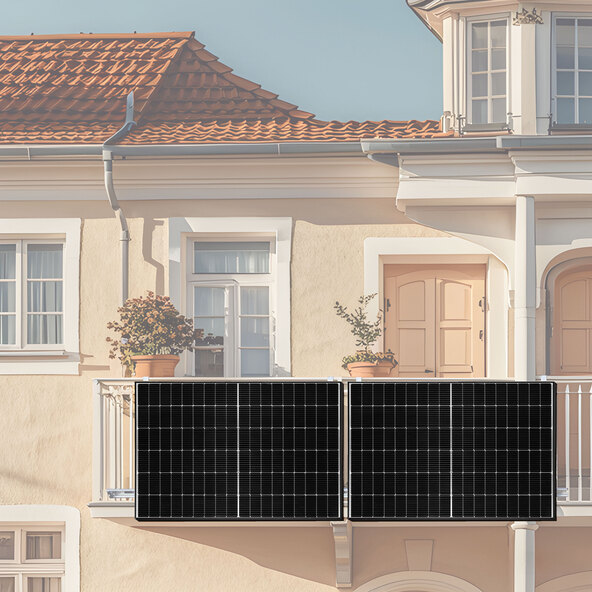

The 2x 415 W Dual Starter Set balcony power plant allows you to easily feed solar energy directly into your home's electrical grid via a standard household plug. With robust, weatherproof aluminum solar panels and a powerful inverter, you can achieve a total output of up to 800 W. The data monitoring app (Wi-Fi) provides information on output voltage, current, power, and hours of sunshine per day.

Features:

• Direct power feed-in to the home grid via Schuko plug
• Data monitoring via app (Wi-Fi): output voltage, current, power in watts, hours of sunshine per day
• Robust and weatherproof solar modules with aluminum frame
• Powerful inverter for a total output of up to 800 W
• Rapid shutdown function in case of grid failure according to VDE-AR-N 4105
• Technical data, PV module:
• PV technology: PERC
• Cell type: Monocrystalline
• Nominal power: 415 Wp
• Voltage (Max./No-load): 30.79 V / 37.31 V
• Current (Max./Short circuit): 13.48 A / 14.01 A Cell efficiency: approx. 21.25 % Connection cable: MC4-compatible, 2 x 4.0 mm² Ambient temperature range: -40 to 85 °C Max. System voltage: 1,500 V

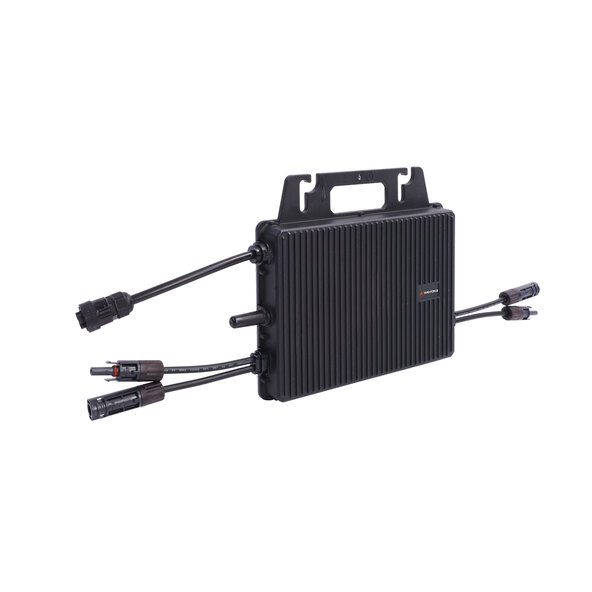

• Technical data, inverter:
• Input power (recommended): 415 W x 2
• DC input voltage (max./MPPT range/operating range): 60 V / 16-60 V / 16-60 V
• DC short-circuit current (max.): 20 A
• DC input current (max.): 14 A
• AC output power: 800 W1
• AC output current (max.): 4 A
• AC nominal voltage and frequency range: 230 V, 50 Hz
• Frequency range (extended): 45-55 Hz
• Efficiency: approx. 96.5% (CEC), approx. 99% (MPPT)
• Power consumption without sun: < 50 mW
• Ambient temperature range: -40 to 65 °C (Derating above 50 °C)
• WLAN (2.4 GHz, IEEE 802.11/b/g/n)
• Connections: 2 x 2 MC4-compatible, 1 x 230 V output
• Display and control: LED status indicator
• Protection class: PV module (connection box) IP68, inverter IP67

Dimensions/Weight:

• Per panel, W x H x D: approx. 172.2 x 113.4 x 3 cm
• Approx. 45.2 kg

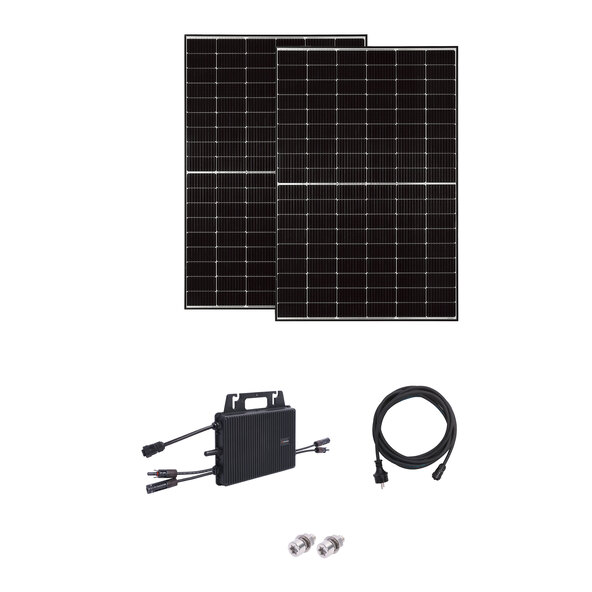

Scope of delivery:

• YARD FORCE Balcony Power Plant Dual Starter Set, 2x 415 W
• 2 x solar panels
• 1 x inverter
• 1 x 5 m connection cable H07RN-F 3G 1.0 mm² with connector and VDE plug (IP44)
• 2 x screw sets for mounting the inverter to the solar panel

1 Note: Due to legal regulations, the output is limited to < 600W in the delivered state. Increasing it to a maximum of 800W is done via app, depending on national legislation.
