Compact helper for precise cuts in wood

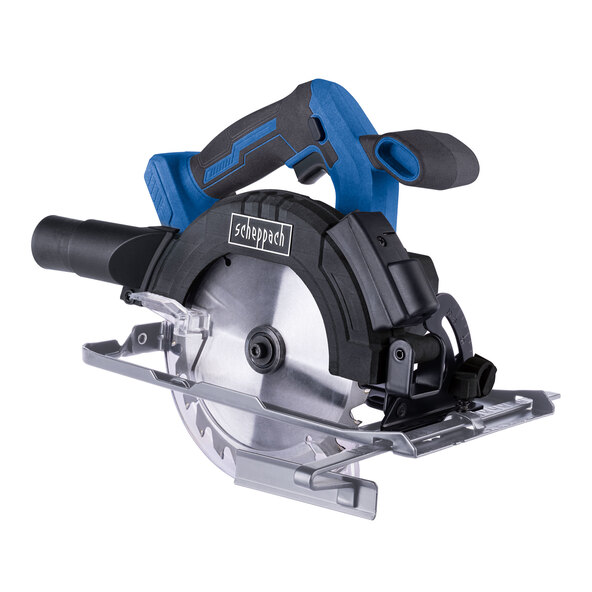

The Scheppach C-HCS165-X cordless circular saw impresses with its compact design and ability to make precise cuts in wood. Thanks to stepless cutting depth and angle adjustment, as well as easy blade changes with spindle lock, the circular saw is easy to use. The integrated laser and LED work light ensure optimal visibility of the cutting line. As part of the Scheppach IXES 20-volt series, it is compatible with all batteries and chargers in the series.

ATTENTION: Please observe the safety instructions in the operating manual.

NOTE: Battery and charger are not included.

Features:

• Powerful cordless circular saw for precise wood cutting
• Motor type: Brushless motor
• Battery voltage: 20 V
• Saw blade, Ø: approx. 16.5 cm (for standard saw blades with Ø 16.5 cm x Ø 2 cm)
• Cutting height at 90°: max. 53 mm, at 45°: max. 39 mm
• Swivel range: max. 45°
• Number of saw blade teeth: 24
• Saw blade speed: 4,300 min-1
• Infinitely variable cutting depth and angle adjustment

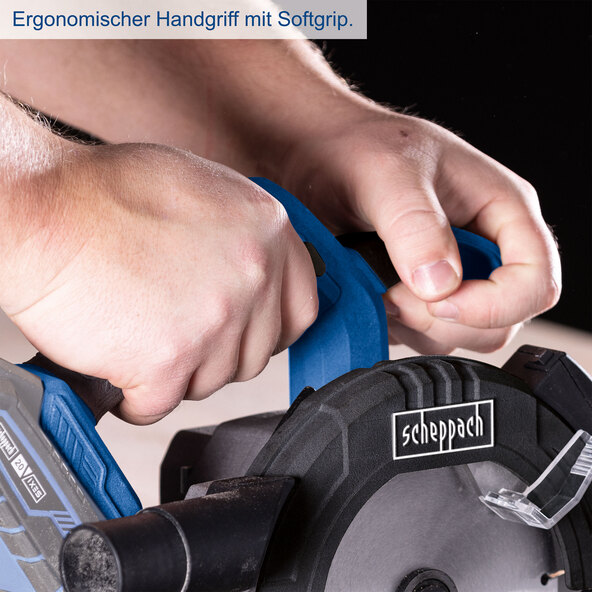

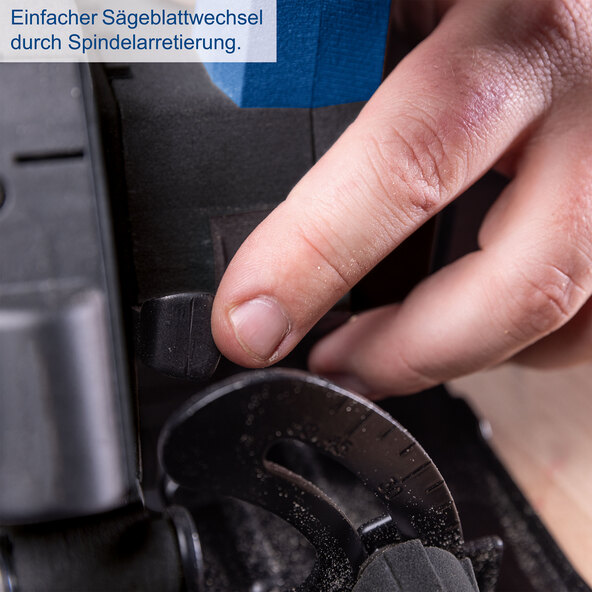

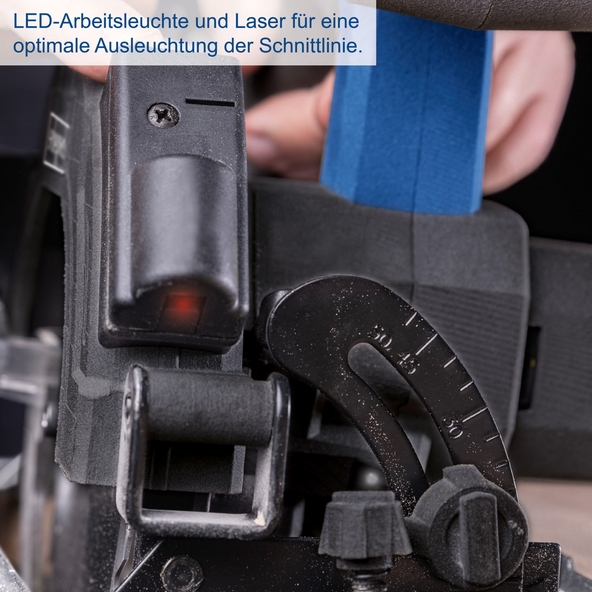

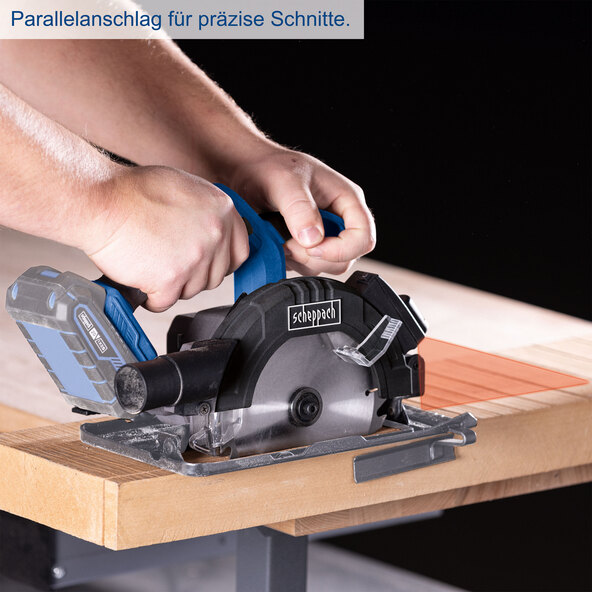

• Easy saw blade change with spindle lock Integrated laser and LED work light Practical design with soft-grip surface Parallel guide for precise cuts On/off switch with quick-stop Safety switch with lockout function, operable from both sides Integrated soft start and overload protection Dust extraction port Pendulum guard with retractable lever Cordless operation: Compatible with all batteries and chargers in the IXES 20-volt series Dimensions/Weight: L x W x H: approx. 29.5 x 18 x 20 cm Approx. 3 kg

Scope of delivery:

• Scheppach cordless circular saw C-HCS-165-X, 165 mm, without battery and charger
• 1 x saw blade (Ø 16.5 cm with 24 teeth)
• 1 x dust extraction adapter
• 1 x reducer
• 1 x Phillips head screw
• 1 x spring washer
• 1 x flat washer
• 1 x Allen key
• 1 x parallel guide
• Instruction manual

CAUTION: Please observe the safety instructions in the instruction manual.

NOTE: Battery and charger are not included.
