• Work quickly and powerfully with a 1,500 W motor, 8,500 rpm, and an automatic feed of 7.4 m/min
• Easy height adjustment via hand crank and measuring scale with a clearance of 5–152 mm / 330 mm (H x W)
• Steel cutterhead with a 48 mm cutterhead and 2 planing knives
• Ideal for mobile use with 2 carrying handles and a compact design
• Sheet steel thicknessing table with foldable extension at the front and rear, totaling 330 x 630 mm

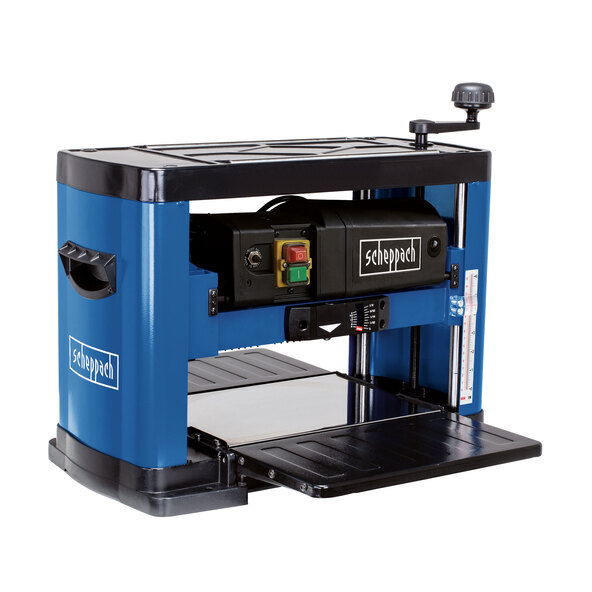

Precise planing – even on the go

The Thanks to its two carrying handles, this professional thickness planer is ideal for mobile use on construction sites. The compact design of this professional thickness planer features a sheet steel thicknessing table that can be extended at the front and back. The planing area accommodates workpieces up to 330 mm wide and 152 mm high. You can adjust the height in no time using a hand crank and the clearly visible scale. Once set, nothing will shift, allowing you to plane, for example, floorboards one after the other to the exact same size. Where planing takes place… Where planing takes place, shavings and dust disappear directly into the generously sized dust extraction hood with a connection for your external dust extractor. The Scheppach thickness planer also features a dustproof on/off safety switch.

The most powerful component is the 1,500 W motor of the thickness planer: at 8,500 rpm, the planer shaft achieves a chip removal of up to 2.8 mm per pass. The automatic feed of 7.4 m/min ensures rapid progress during work.

ATTENTION: Please observe the safety instructions in the operating manual.

¹ External dust extraction not included.

Features:

• Compact and lightweight design with 2 carrying handles, ideal for mobile use
• Height adjustment via hand crank and measuring scale
• 2 workpiece return rollers
• Automatic feed
• Steel cutterhead with 2 planer knives
• Stainless steel planer table with 1 folding table extension each at the front and rear
• With generous extraction port for external dust extraction¹
• Award-winning professional planer for precise planing in in the workshop or on the construction site. You can find more information about the award ceremony at: https://worldtoolawards.com/en/winner/117-scheppack-PLM1800

Technical data:

• Motor: 230 V/50 Hz
• Motor power: 1,500 W
• With motor protection
• Max. planing width: 330 mm
• Max. planing height: 152 mm
• Max. Chip removal: 2.8 mm
• Feed speed: 7.4 m/min
• No-load speed: 8,500 rpm
• Number of planer knives: 2

Dimensions/Weight:

• L x W x H: approx. 63 x 58 x 50 cm
• Approx. 33 kg

Scope of delivery:

• Scheppach PLM1800 thickness planer
• 1 Allen key
• 1 push stick
• Instruction manual

ATTENTION: Please observe the safety instructions in the instruction manual.

¹External dust extraction not included

Manufacturer's warranty conditions:

Our products are subject to strict quality control. Should this device nevertheless malfunction, we sincerely regret this and ask you to contact our listed service address. We are also happy to assist you by telephone via our service hotline. The following applies to the assertion of warranty claims – without limiting your statutory rights:

1. Warranty claims can only be made within a maximum period of 5 years, calculated from the date of purchase. Our warranty service is limited to the repair of material and manufacturing defects or the replacement of the device. Our warranty service is free of charge for you. 2. Warranty claims must be made immediately upon discovery of the defect. Claims made after the warranty period has expired are excluded, unless they are made within 2 weeks of the warranty period's expiration. 3. Please send a defective device, along with the warranty card and receipt, to the service address. Please request a free collection from the specified service center. If the defect is covered by our warranty, you will receive a repaired or new device. Repair or replacement of the device does not start a new warranty period. The 5-year warranty period from the date of purchase remains valid. This also applies when using on-site service.

Please note that our warranty is void in the event of misuse or improper handling, failure to observe the safety precautions applicable to the device, use of force, or interventions not carried out by an authorized service center. We will repair defects in the device not (or no longer) covered by the warranty, or damage that has voided the warranty, for a fee. Please send the device to our service address for this purpose.

Your statutory warranty rights, which are free of charge, remain unaffected.

Before sending in your device, please contact our CUSTOMER SERVICE by phone or email. This way we can help you with any operating errors.

00800 4001 4001

[email protected]

Scheppach GmbH

Günzburger Straße 69

89335 Ichenhausen Germany

www.scheppach.com
