Ideal for the home workshop

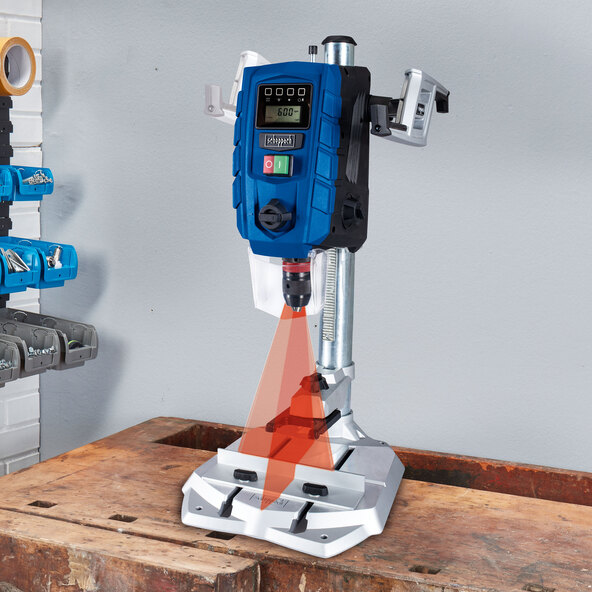

Attention all DIY enthusiasts! Whether you're renovating or building furniture: with the Scheppach DP60 bench drill, you have the ideal companion for your home workshop. The modern bench drill is precise and accurate – so you can concentrate fully on your project. Ideal for the home workshop with a stable base plate. Digital speed adjustment from 170 to 2,600 rpm via the practical digital display. Useful quick-release clamp for securing workpieces. For drilling steel and wood – max. drilling diameter in steel: 13 mm, in wood: 40 mm. Integrated laser for very precise drilling results. Drilling can be this easy. You no longer have to deal with crooked holes and imprecise results, because the Scheppach DP60 bench drill is extremely accurate: You can drill in both wood and steel with precision. Precise and fast drilling with this machine. Thanks to the stable base plate, the drill can be easily installed on the workbench. Digital speed display for precise drilling settings. With the practical quick-release clamp, you can securely fix your workpiece in seconds. The digital display of the DP60 drill allows you to precisely set the desired speed from 170 to 2,600 rpm. This way, you can accurately control your drilling performance. The integrated laser and LED lighting, which optimally illuminates the work area, also ensure precise results.

Features:

• Ideal for small workshops, for home and hobby craftsmen
• Precise speed setting via digital display
• Easy reading of the drilling depth, even drilling in series is easily accomplished
• Powerful 2-speed gearbox for the right setting
• Tool-free clamping of drill bits into the quick-release chuck

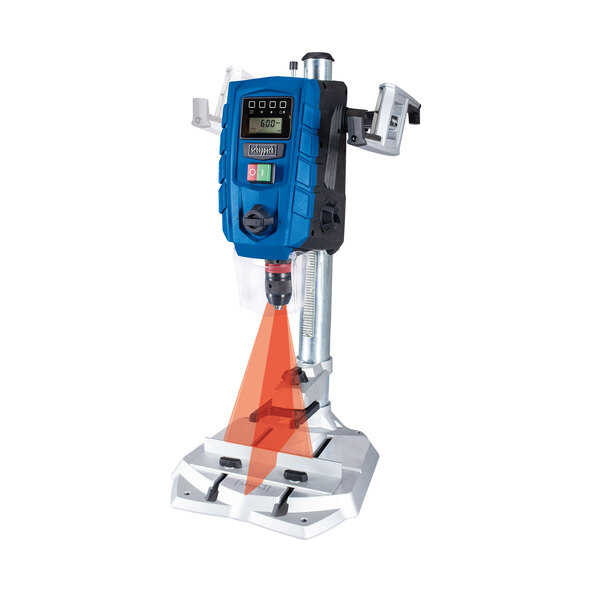

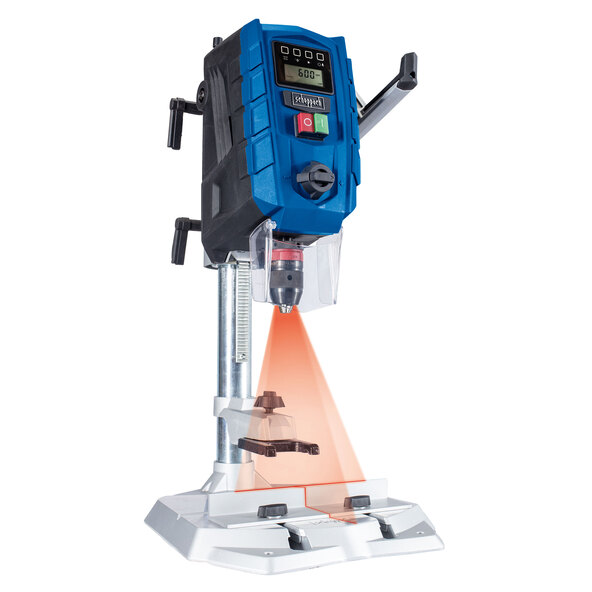

• Integrated laser for easy and precise drilling
• Integrated LED for perfect illumination of the work area

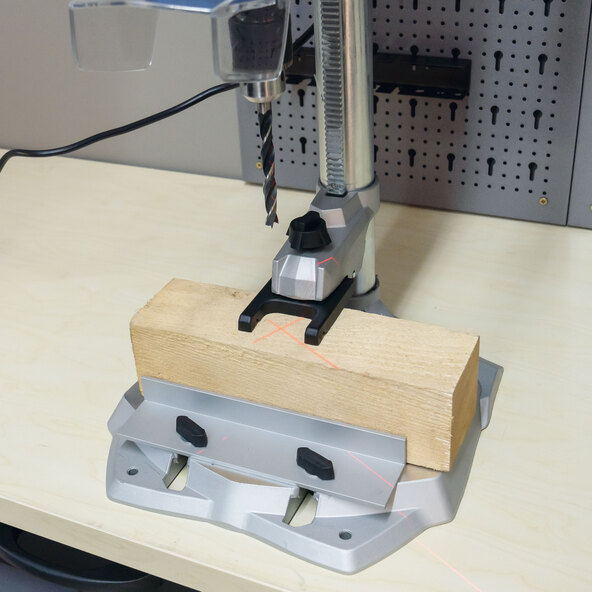

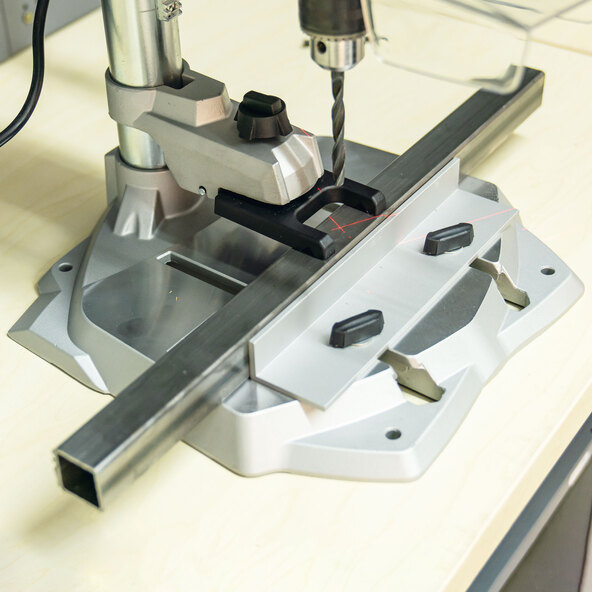

• The quick-release clamp optimally secures even round workpieces
• Handle that can be mounted on either side

Technical data:

• Variable speed: approx. 170–2,600 rpm
• Motor: 220–240 V~/50 Hz
• Motor power: 710 W
• Gearbox: 2-speed
• Distance between chuck and base plate: approx. 280 mm
• Chuck clamping range: 1.5–13 mm
• Max. drilling diameter in steel: 13 mm
• Max. drilling diameter in wood: 40 mm
• Drilling stroke: approx. 100 mm

Dimensions/Weight:

• Overall, L x W x H: approx. 350 x 300 x 750 mm
• Approx. 9.4 kg
• Base plate, L x W x H: approx. 350 x 300 x 30 mm

Scope of delivery:

• Scheppach DP60 digital bench drill
• Operating instructions
• Warranty card
