Promoting Water with a System

Your domestic water supply system is characterized by sophisticated technology, a high flow rate, and numerous water source options that effortlessly support the greening of your garden.

• Automatic on/off switching of the pump with electronic flow switch
• Powerful pump: Delivery head up to max. 36 m and pressure up to max. 3.6 bar
• Electronic dry-run protectionprevents dry running

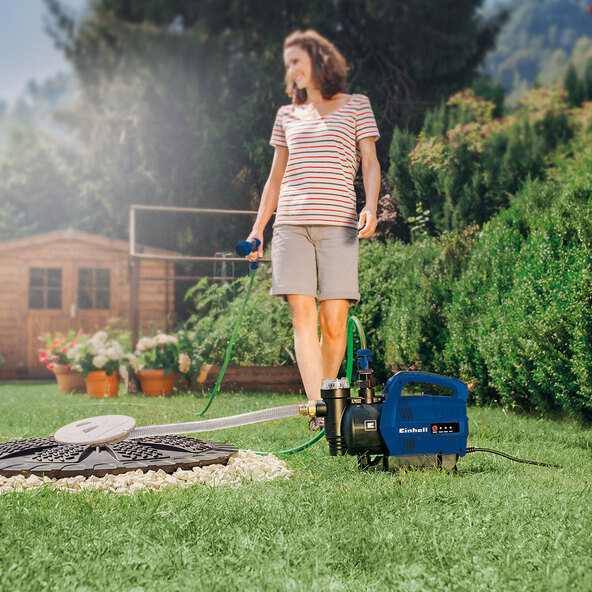

• Water can be drawn from ponds, streams, rain barrels, rainwater cisterns, and wells thanks to a pre-filter with integrated check valve

Fresh Greenery for Your Garden

Unlike one of the Many garden pumps, including the Einhell automatic domestic water supply system, feature an electronic flow switch: The pump switches on and off automatically when water is drawn. You don't have to switch it on manually, and therefore you can't forget to switch it off again. Compared to a domestic water supply system, the automatic domestic water supply system maintains constant pressure; you don't have to wait for the device to build up pressure. Therefore, it is also suitable for operating lawn sprinklers, for example. Powerful automatic domestic water supply system with a flow rate of approximately 3,300 L/h for watering and irrigating green spaces and gardens. Water can be drawn from multiple sources, such as streams or rain barrels. Look forward to easy watering of your garden.

Features:

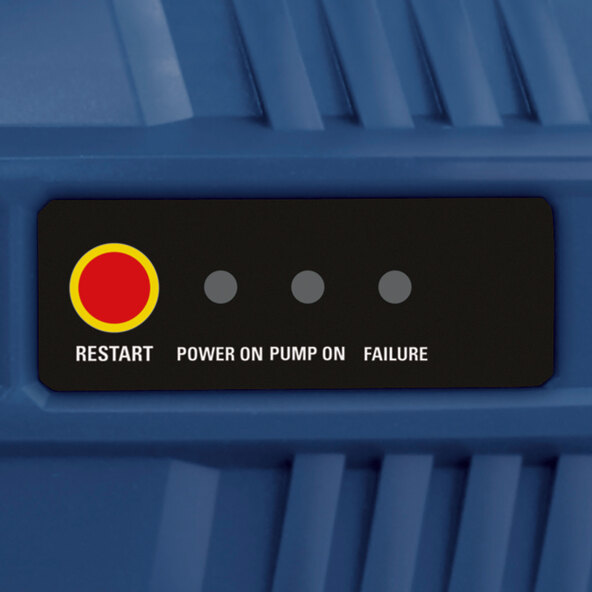

• Electronic flow switch with LED display
• Automatic function
• Large water filling opening

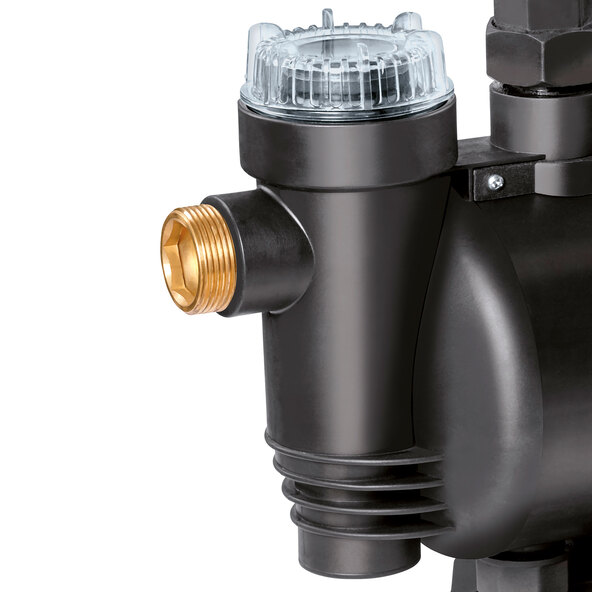

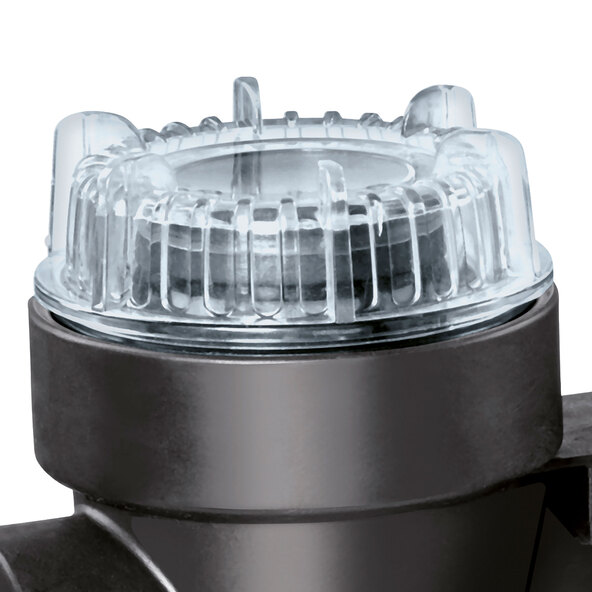

• Pre-filter with integrated check valve
• Integrated electronic dry-run protection
• Water drain screw
• Brass suction connection
• Plastic pressure connection
• Practical carrying handle
• High-quality plastic pump housing

Technical data:

• Mains connection: 230 V|50 Hz
• Power: approx. 630 W
• Max. flow rate: 3,300 L/h
• Max. delivery head: 36 m
• Max. Delivery pressure: 3.6 bar
• Max. suction head: 8 m
• Max. water temperature: 35 °C
• Suction connection: approx. 42 mm (R 1 1/4" male thread)
• Pressure connection: approx. 33.3 mm (R 1" female thread)
• Power cord: approx. 1.5 m
• Protection class: IPX4

Dimensions/Weight:

• L x W x H: approx. 47.5 x 26 x 36 cm
• Approx. 7.75 kg (net)/approx. 9.73 kg (gross)

Scope of delivery:

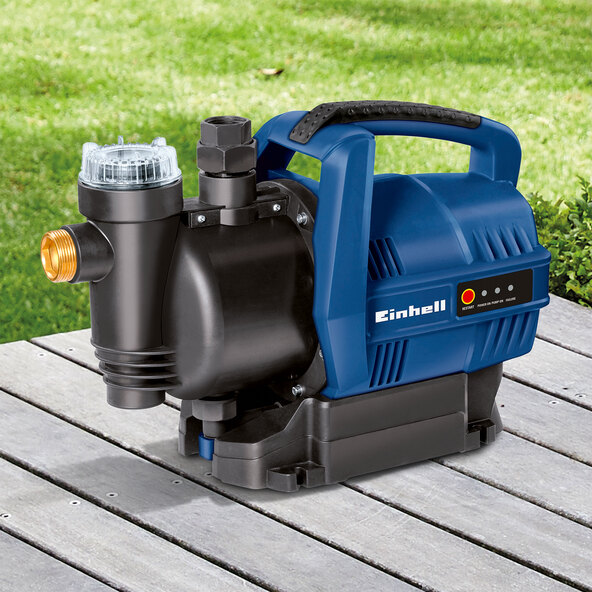

• Einhell BG-HWA 630 domestic water supply system

Instruction manual with warranty card
