Comfortable Roller Shutter Control

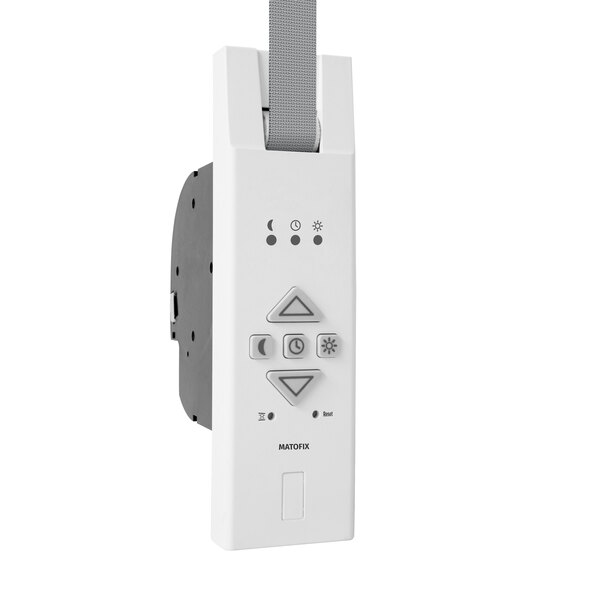

Make your home comfortable: With the Matofix electric belt winder, you can conveniently operate your roller shutters at the touch of a button. This way, you always have control over how much light enters your home – for your personal feel-good atmosphere. The belt winder is suitable for all standard roller shutters with a belt width of 17 to 23 mm and a belt length of up to 6.3 m. Thanks to its pulling force of up to 45 kg, it effortlessly winds up even heavy roller shutters. You can adjust the switching times as desired. Practical LEDs indicate the selected functions.

Features:

• Roller shutter belt winder
• For flush mounting
• Suitable for all standard flush-mounted belt boxes and roller shutters
• Suitable for belt widths of 17–23 mm and belt lengths up to 6.3 m
• Powerful with up to 45 kg pulling force and 6 m² roller shutter area
• Adjustable switching times for automatic opening and closing
• LED signal for selected functions
• Run-up protection / overload protection (e.g., in case of obstruction)
• Gentle soft start and soft stop function
• Easy installation
• Connection cable: approx. 1.5 m

Dimensions/weight:

• Housing, W x H x D: approx. 3.45 x 13.2 x 13.9 cm
• Bezel, W x H x D: approx. 6 x 21 x 2.3 cm
• Approx. 0.9 kg

Scope of delivery:

• Matofix electric belt winder
• Connection cable with Euro plug (1.5 m)
• 2 x mounting screws (4 x 55 mm)
• Winding wheel cover
• Strain relief (incl. 3 mounting screws)
• Release clip
• Screw hole cover
• Operating instructions
