Even more comfort for your home

With the electric belt winder, you can decide how much daylight is allowed to enter through the window – and when. With many convenient features and easy installation.

• Easy installation and use thanks to mounting materials and illustrated instructions
• Adjustable switching times for automatic opening and closing
• New installation or retrofit: suitable for all common flush-mounted belt boxes and roller shutters
• Powerful with approx. 45 kg pulling force

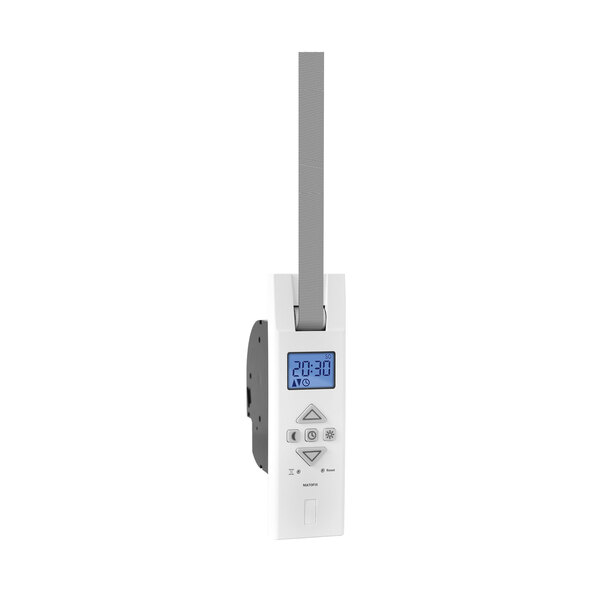

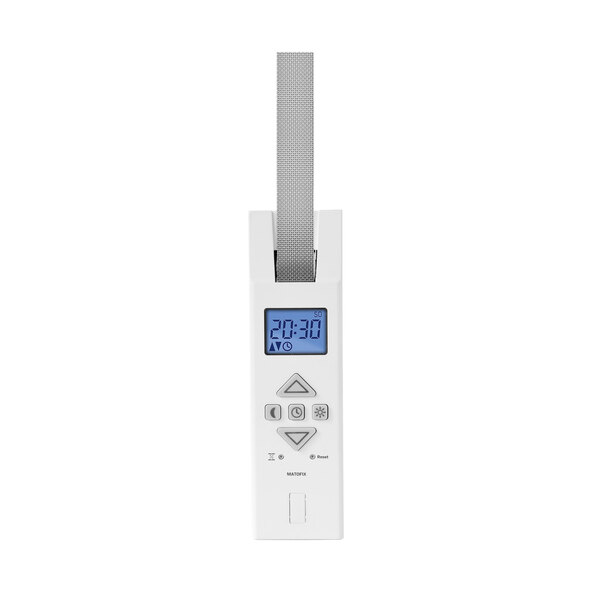

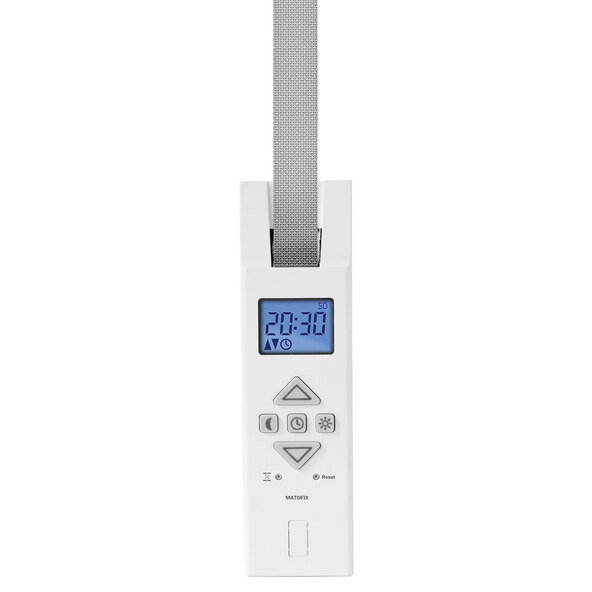

Powerful winder with LC display

The electric roller shutter belt winder is suitable for all common roller shutters with a roller shutter belt width of 17 to 23 mm. With a pulling force of up to 45 kg, the belt winder winds up to 6.3 m of belt with a 1 mm belt thickness and raises the roller shutter. The MATOFIX PRO belt winder is easy to install and ready to use immediately. It connects to the mains power supply via a 1.5 m connection cable. Automatic summer/winter time changeover. The belt winder comes in a simple white finish. Install it under plaster or in a standard belt box. The automatic summer/winter time changeover provides even greater convenience. Set the switching times yourself as desired via the easy-to-read LCD display.

The electric belt winder offers you a convenient solution for the automatic opening and closing of roller shutters.

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• For the automatic opening and closing of roller shutters
• For all common roller shutters
• Fits in standard belt boxes
• Adjustable operating times
• Powerful with approx. 45 kg pulling force - for roller shutter belt widths of 17 - 23 mm
• Easy-to-read LCD display
• Automatic summer and winter time changeover
• For flush mounting
• Ready for immediate use
• Easy installation
• Color: white

Technical data:

• Supply voltage: 230 V/50 Hz
• Standby consumption: < 0.2 W
• Webbing width: approx. 17–23 mm
• Max. winding capacity: approx. 6.3 m with 1 mm webbing thickness
• Max. Pulling force: approx. 45 kg Rated torque: 11 Nm Connection cable: approx. 1.5 m Suitable for dry rooms only Dimensions: Housing, W x H x D: approx. 3.45 x 13.2 x 13.9 cm Cover, W x H x D: approx. 6 x 21 x 2.3 cm Scope of delivery: MATOFIX PRO electric roller shutter belt winder Connection cable with Euro plug (1.5 m) 2 x mounting screws (4 x 55 mm) Winding wheel cover Strain relief (incl. 3 mounting screws) Release clip (located in the housing of the belt winder)
• Screw hole cover
• Illustrated operating instructions

CAUTION: Please observe the safety instructions in the operating manual.
