For more comfort when opening and closing your roller shutters

How much daylight do you want? You decide how much daylight enters your home – and when. The 3 LEDs inform you about the active functions. The belt winder is designed for surface mounting and can be installed quickly and easily.

• Easy installation and use: Mounting materials and illustrated instructions included
• Adjustable switching times for automatic opening and closing
• For retrofitting or new installation: suitable for all common roller shutters with surface-mounted winders
• Swivel unit
• Powerful: approx. 45 kg pulling force

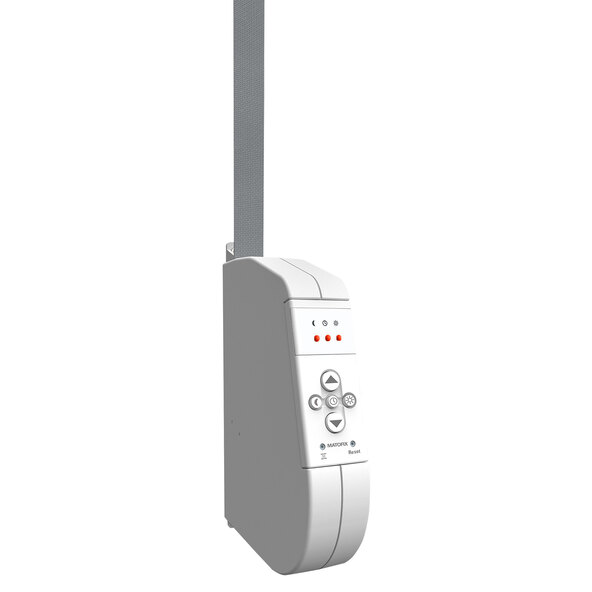

Electric strap winder with high pulling force

The electric roller shutter strap winder is suitable for all standard roller shutters with a strap width of 12 to 15 mm. With a high pulling force of up to 45 kg, the electric strap winder winds up to 6.3 m of strap (1 mm thickness) and raises the roller shutter. You can easily install your MATOFIX strap winder and use it immediately. A 1.5 m connection cable is included, allowing you to connect your strap winder to the power supply right away.

Goodbye mechanical strap winder, hello electric strap winder!

The model is finished in a simple white and can be easily mounted on the plaster or window frame. Your new electric surface-mounted belt winder also features 3 function LEDs that indicate its active operation. The winder unit is freely swiveling, ensuring greater ease of use. The MATOFIX swivel winder is easy to install and boasts a powerful pulling force, making it ideal for lifting roller shutters!

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• For automatically opening and closing roller shutters
• Swivelable
• For all common roller shutters with a roller shutter strap width of 12–15 mm
• Adjustable travel times
• 3 Function LEDs
• Powerful: approx. 45 kg pulling force – for roller shutter strap widths of 12 to 15 mm
• For surface mounting
• Ready for immediate use
• Easy installation
• Color: white

Technical data:

• Supply voltage: 230 V/50 Hz
• Standby consumption: ≤ 0.2 Webbing width: approx. 12–15 mm Max. winding capacity: approx. 6.3 m with 1 mm webbing thickness Roller shutter area: up to approx. 6 m² Max. pulling force: approx. 45 kg Rated torque: 11 Nm Connection cable: approx. 1.5 m Suitable for dry rooms only Protection class: IP20 Dimensions/Weight: Screw hole spacing: approx. 213 mm Approx. 0.96 kg

Scope of delivery:

• MATOFIX electric swivel roller shutter belt winder,
• Connection cable (approx. 1.5 m)
• 2 x mounting screws (4 x 40 mm) with branded dowels
• 2 x mounting screws (4.2 x 19 mm)
• Winding wheel cover
• Release clip
• Illustrated operating instructions
• Warranty card

ATTENTION: Please observe the safety instructions in the operating manual.
