For a good working environment

Whether sawing, planing, or sanding: your new Scheppach machine reliably extracts dust, shavings, and other particles, no matter what woodworking you're doing.

• Long emptying cycles thanks to the 75-liter collection bag
• For large quantities of shavings thanks to a suction power of 1150 m³/h³/h
• Particularly stable metal construction for attaching the filter bag
• Compatible with various devices thanks to the 4-piece adapter set
• Easy handling with transport wheels and a 2-meter-long hose

Take a deep breath

So you can work in your So you don't have to hold your breath in your workshop, your dust extraction system ensures a clean environment with a consistent output of 1150 m³/h. This allows you to maintain a clear view of your projects and keep your airways clear. Even more demanding tasks are less stressful thanks to the extraction system, as your collection container has a 75-liter capacity, meaning you only need to empty it infrequently. The air is clean. The extraction hose of your system has a diameter of approximately 10 cm and a length of approximately 200 cm, through which fine dust and other dirt particles are quickly transported. The length of the hose, along with a practical transport device, allows you to use the dust extraction system flexibly without having to constantly reposition it. Ensure clean air in your workshop, free of sawdust and dust particles, thanks to the dust extraction system, so you can fully concentrate on your projects.

Features:

• For large quantities of dust and shavings
• Long emptying cycles
• Incl. 4-piece adapter set for all small appliances
• Sturdy metal construction with bracket for hanging the filter bag
• Wheel drive for easy transport

Technical data:

• Air flow approx.: 1150 m³/h
• Vacuum approx.: 900 Pa
• Filter area approx.: 1 m²
• Filling capacity approx.: 75 l
• Motor approx.: 230 V~ / 50 Hz
• Motor power approx.: 550 W

Dimensions/Weight:

• L x W x H: approx. 65 x 44.6 x 143 cm

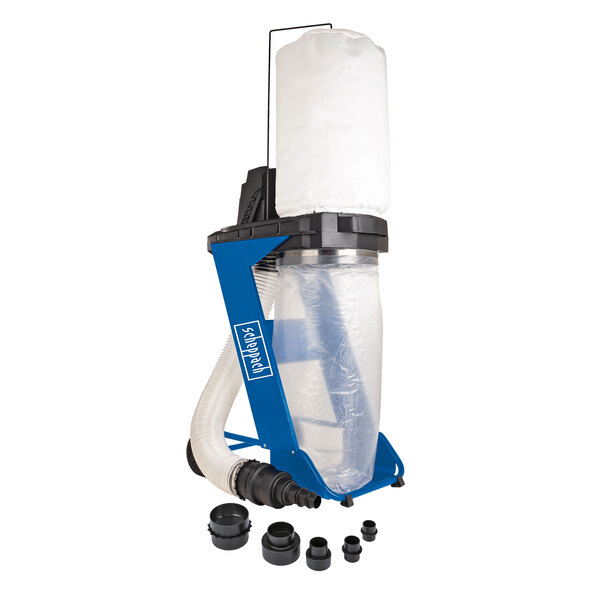

• Hose length approx.: 200 cm Suction hose diameter approx.: 10 cm Approx. 14 kg Scope of delivery: Scheppach DC500 dust extraction system, 4-piece adapter set, operating instructions, warranty card Manufacturer's warranty conditions: Our products are subject to strict quality control. Should this device nevertheless malfunction, we sincerely regret this and ask you to contact our listed service address. We are also happy to assist you by telephone via our service hotline. The following applies to the assertion of warranty claims – without limiting your statutory rights: 1. Warranty claims can only be made within a period of a maximum of 5 years, calculated from the date of purchase. Our warranty is limited to the repair of material and manufacturing defects or the replacement of the device. Our warranty service is free of charge for you. 2. Warranty claims must be made immediately upon discovery. Claims made after the warranty period has expired are excluded, unless they are made within two weeks of the warranty period's expiration. 3. Please send a defective device, along with the warranty card and receipt, to the service address. Please request a free pickup from the specified service center. If the defect is covered by our warranty, you will receive a repaired or new device. Repair or replacement of the device does not start a new warranty period. The original warranty period of five years from the date of purchase remains valid. This also applies when using on-site service.

  Please note that our warranty is void in the event of misuse or improper handling, failure to observe the safety precautions applicable to the device, use of force, or interventions not carried out by an authorized service center. We will repair defects in the device not (or no longer) covered by the warranty, or damage that has voided the warranty, for a fee. Please send the device to our service address for this purpose.

  Your statutory warranty rights, which are free of charge, remain unaffected.

  Before sending in your device, please contact our CUSTOMER SERVICE by phone or email. This way we can help you with any operating errors.
