Outdoor heating system

The infrared heater, suitable for balconies or patios, helps you spend more time outdoors in comfortable temperatures.

• Energy-efficient with PIR motion sensor
• Protected against environmental influences thanks to IP55 protection class¹
• Wide radiant heat, at a distance of 4 meters and a 180° angle
• Stable in use thanks to tip-over protection and SAFE-TOUCH housing
• Flexible location – vertical and horizontal mounting of the wall heater at various heights is possible

Imagine a heater on your outdoor surface. The Warmwatcher® Vermount infrared heater warms a four-meter radius at a 180° angle around the heater. You regulate the heat using the included remote control. Wall mounting is easy: at any height, vertically or horizontally, using the included mounting hardware.

Heat Heater with Many Features

The PIR motion sensor switches off the heater after four minutes if it doesn't detect any movement. This helps you reduce energy consumption and CO2 emissions. The housing is made of pressed aluminum, which prevents rust. Furthermore, it only reaches a maximum temperature of 60°C during operation, thus reducing the risk of burns. So you can confidently place the heater outdoors, the device has an IP55 protection rating and a tip-over switch. The infrared heater brings pleasant infrared warmth and comfortable temperatures to your outdoor area. With a PIR sensor, various functions, and easy installation, this electric heater is a valuable addition to any household. ATTENTION: Please observe the instructions for safe use of the device as described in the user manual! The IP55 protection rating means that the device is very resistant to water jets from any angle. It is not protected against very strong water jets or temporary immersion.

Features:

• Extruded aluminum housing
• SAFE-TOUCH housing, only heats up to 60 °C during operation
• Fabric-flocked protective grille

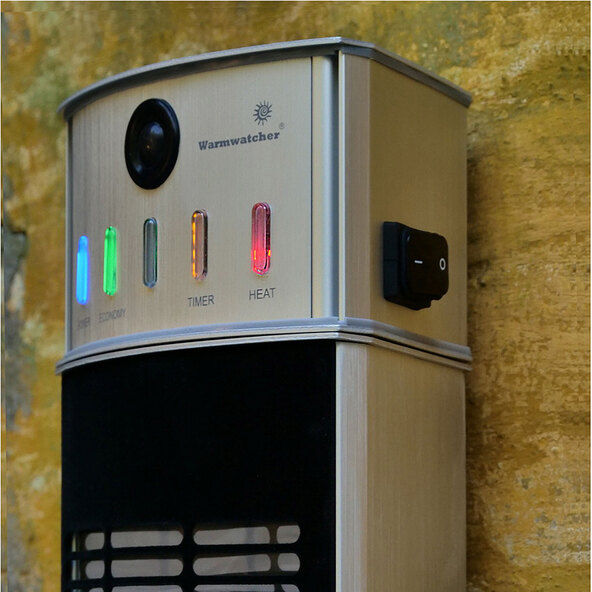

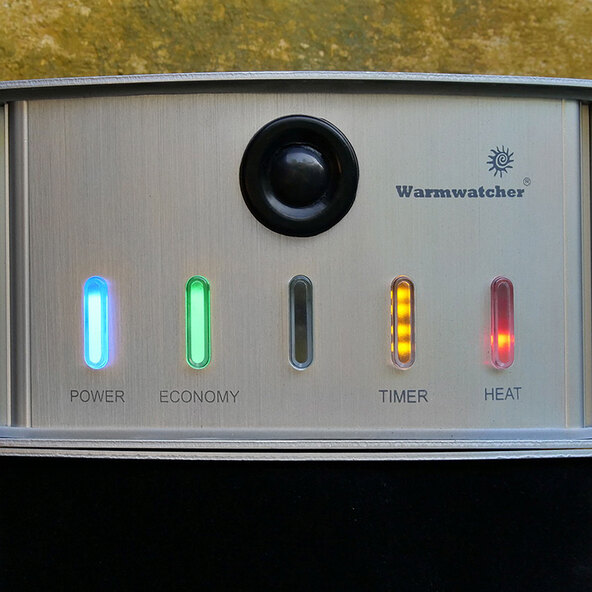

• Switchable control unit with PIR sensor, power indicator/standby, economy function, receiver remote control, timer, heat regulation
• PIR motion sensor switches off heating after 4 minutes if no movement is detected
• Infrared heating elements with carbon fiber technology
• Mounting at various heights, both vertical and horizontal possible
• Effective heating distance/area, the radiant reaches up to 4 m from the heating device at an angle of 180°
• Corrosion-resistant stainless steel protective grille in front of the heating elements
• Tip protection function – prevents tipping The heater switches itself off. Color: silver/black. Cable length: approx. 1 m. Includes remote control with a 4 m range. Technical data: Total power: 2.5 kW. Wattage: 2.5 kW. Voltage: 220–240 V/~50 Hz. Protection class: IP55. Dimensions/Weight: W x H x D: approx. 19.5 x 127 x 14.7 cm. 6.4 kg

Scope of delivery:

• Warmwatcher® Vermount infrared heater
• Weatherproof cover
• Mounting materials (1 x U-bracket, 5 x mounting sleeves, 1 x fixing bracket, mounting screw and washer for attaching to the housing)
• Instruction manual
• Warranty card

ATTENTION: Please observe the instructions for safe use of the device as described in the instruction manual!

¹ The IP55 protection rating means that the device is very resistant to water jets from any angle. It is not protected against very powerful water jets or temporary immersion.
