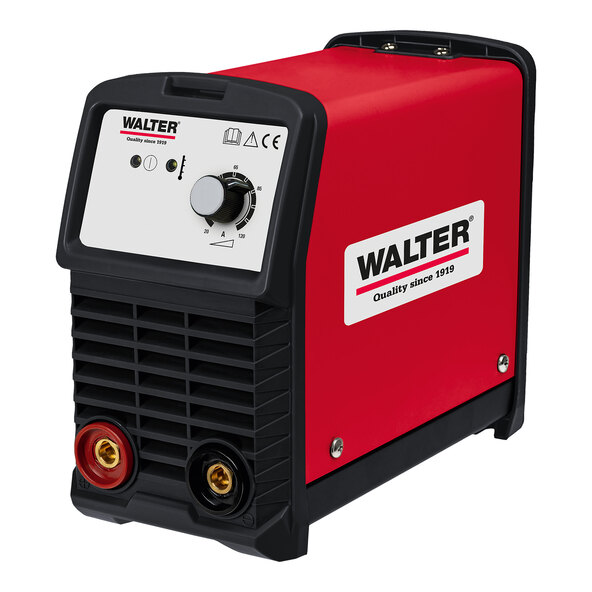

Flexible Inverter

With this welding machine, you'll bring your new treasure into your workshop. Thanks to its compact design, the device is versatile and fits even in smaller workshops.

• Flexible use thanks to its compact design and low weight
• Get started right away: All necessary accessories are included
• Good working safety thanks to thermal protection
• Versatile use: Ideal for steel and stainless steel

Start your new DIY project with enthusiasm

Use your new welding machine flexibly for various tasks. This is made possible by its low weight of 3.1 kg and the continuously adjustable welding current from 20–120 amps. The compact design also makes it easy to handle. So you can dive into your latest project with great anticipation and dedicate yourself to welding.

For electrodes with a diameter of 1.6–2.5 mm

Use the welding machine for various materials such as steel or stainless steel. The machine is also compatible with electrodes with a diameter of 1.6 to 2.5 mm. There are virtually no limits to your creativity when working on projects. Fire up your welding machine and get started!

This welding machine will make the hearts of DIY enthusiasts beat faster.

Thanks to the included accessories, you can get started right away.

Features:

• Versatile inverter welding machine
• All necessary accessories included
• Automatic thermal protection
• Modern inverter technology for stable welding current
• Ideal for steel and stainless steel
• Very easy to handle due to its compact design
• For electrodes with a diameter of 1.6 to 2.5 mm

Technical data:

• Model: WWS-120B2-K01
• Rated voltage: 230 V/50 Hz
• Min. Fuse: 16 A (slow-blow)
• Welding current: 20–120 A (MMA)
• Electrode diameter: 1.6–2.5 mm
• Protection class: IP21S
• Insulation class: H
• Open-circuit voltage: 70 V
• Operating voltage: 22.6–24.8 V
• Cooling type: AF

Dimensions/Weight:

• L x W x H: approx. 255 x 130 x 210 mm
• Approx. 3.1 kg

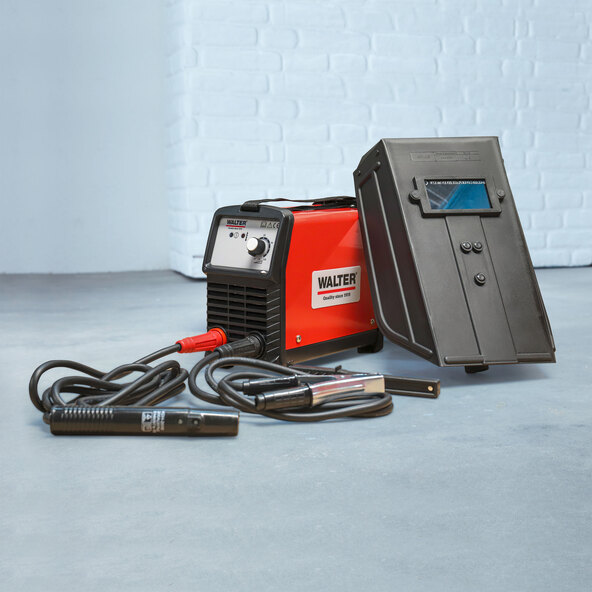

Scope of delivery:

• Walter WWS-120B2-K01 inverter welding machine
• Welding cable with electrode holder
• Welding cable with ground clamp
• 2 x protective glass locks
• 3 x knurled screws M6 x 14
• 2 x mounting clips
• 3 x nuts M6
• Light protective glass
• Dark protective glass
• Frame for protective glass
• Handle
• Welding shield
• Carrying strap
• Operating instructions

Operating instructions & warranty card
