Smart watering in your home oasis

The SmartGarden irrigation system from Bresser helps you water your plants. You can use the system for your lawn as well as for flower and vegetable beds. You can easily control the irrigation system via the HOMGAR app and set up to six watering schedules per day. The water timer switches the system on and off at the desired time.

• Irrigation system with integrated weather station for optimal irrigation performance
• Two practical operating modes: Irrigation and misting
• Up to six irrigation schedules per day and water consumption statistics thanks to app control
• Prevents overwatering by adapting to current soil conditions
• Keeps an eye on weather and indoor climate with weather forecast and comfort level indicator

Saving water made easy

In addition to the automatic irrigation times, you can also determine the amount of water and its output. You have the choice between two operating modes: irrigation and misting. Even if you have set an irrigation schedule, you don't have to adjust it to the weather on rainy days – your irrigation system takes care of that for you. To prevent overwatering, the device reacts to the current measurements of the soil sensor.¹ The rain pause function also allows you to postpone all watering schedules by 24 hours in case of heavy rain.

Everything at a glance with the integrated weather station

Thanks to the integrated weather station of your Bresser irrigation system, you'll no longer be caught off guard by a change in the weather. The graphical weather forecast with probability of rain shows you all the important weather data as well as your current indoor climate at a glance. A frost alarm alerts you via a display message when the outside temperature drops below 3°C. A comfort level indicator also helps you maintain the ideal indoor climate.

Smart solution for your garden: The SmartGarden smart home irrigation system from Bresser supports you in watering your plants. This saves you time, effort, and water, allowing you to enjoy your green oasis.

¹NOTE: Use this function only under supervision

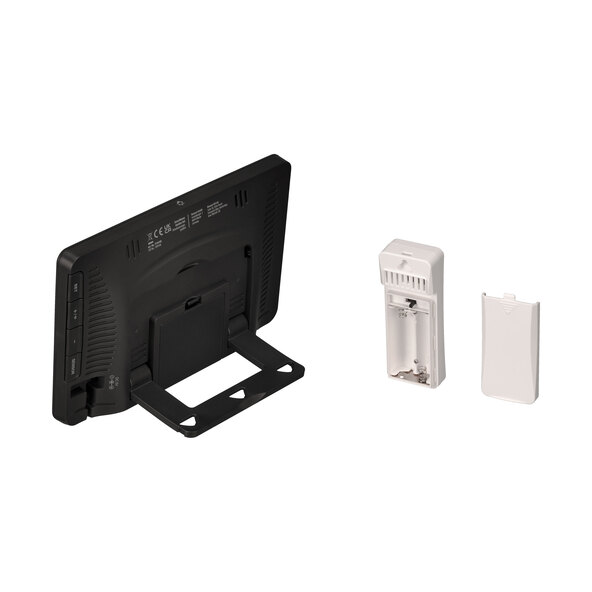

Smart Weather Station:

• For smart irrigation of small lawns or gardens, controllable via the HOMGAR app
• Compatible with Amazon Alexa and Google Assistant
• Graphical weather forecast
• Display of rain and frost probability
• Measurement of indoor temperature, humidity, and air pressure
• Indoor climate comfort indicator
• Display of measurement data from the soil sensor and the thermo-hygro sensor
  (soil moisture, outdoor temperature, and humidity)
• Display of time, day of the week, and date
• Alarm clock with snooze function
• Smart Backlight
• Wi-Fi frequency: 2.4 GHz
• Power supply: AC adapter (included), 3x AA backup batteries (not included)

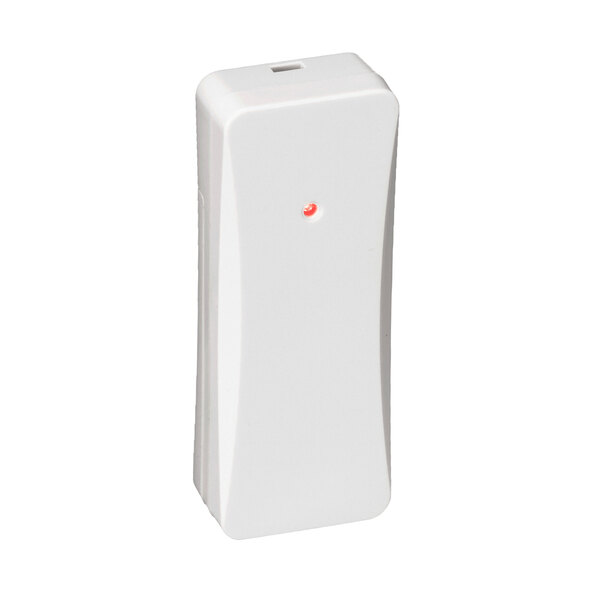

Thermo-hygro sensor:

• Measures outdoor temperature (°C/°F) and humidity
• Range: up to 80 m
• Power supply: 2x AA batteries (not included)

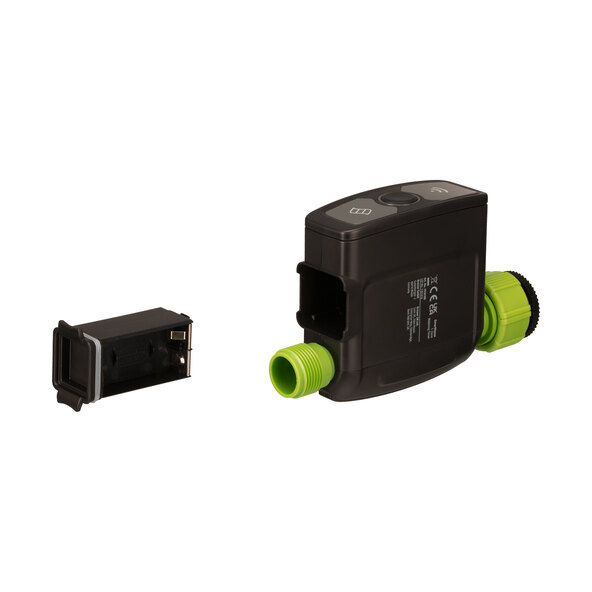

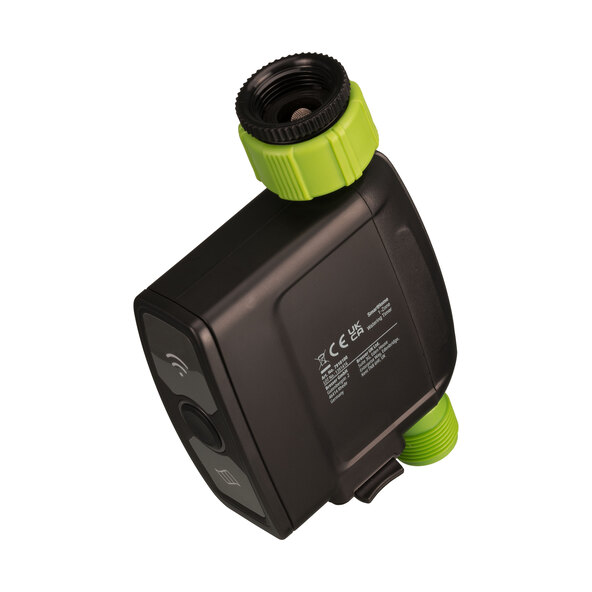

Irrigation timer:

• 2 operating modes: Irrigation and misting
• Rain pause function to postpone irrigation schedules by 24 hours
• Operating water pressure: 0.5 bar to 8 bar (7-116 PSI)
• Flow rate: 5 l/min. up to 35 l/min.
• Manual watering time: 1 min to 60 min.
• Automatic watering time: 1 min to 11 h 59 min.
• Watering schedule: Maximum 6 schedules per day
• Watering frequency: every day, on odd days, on even days, on specific days of the week
• Waterproof, IPX4
• Range: approx. 60 m
• Operating temperature: 3 °C to 50 °C (37 °F to 122 °F)
• Power supply: 4 x AA batteries (not included)

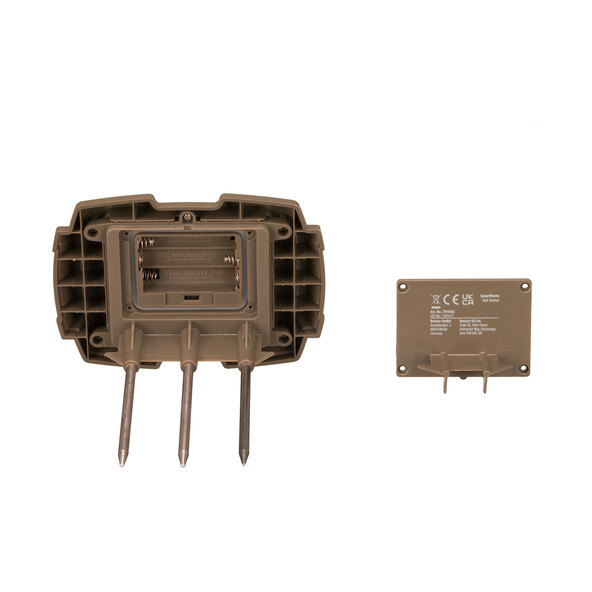

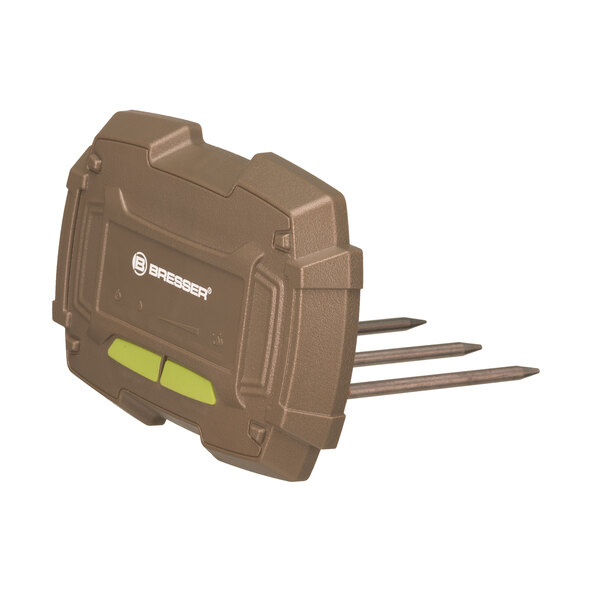

Soil sensor:

• Measures soil moisture and temperature
• Range: up to 60 m between soil sensor and watering timer
• Various moisture levels for effective Water saving
• Data update interval: approx. 5 min.
• Power supply: 3 x AAA batteries (not included)

Dimensions:

• Smart weather station: approx. 3.8 x 1.9 x 10 cm
• Approx. 32 g
• Thermo-hygro sensor: approx. 3.8 x 1.9 x 10 cm
• Approx. 32 g
• Irrigation timer: approx. 4.5 x 10.5 x 16.5 cm
• Approx. 247 g
• Soil sensor: approx. 13.5 x 13.8 x 10 cm
• Approx. 176 cm

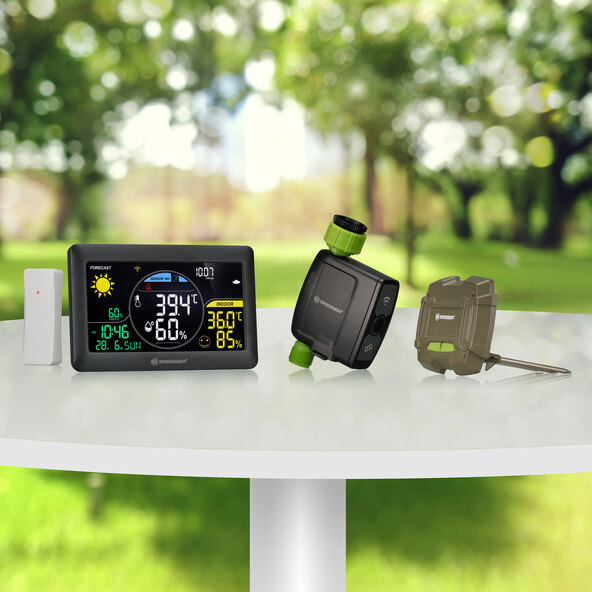

Scope of delivery:

• Bresser SmartGarden irrigation system
• Irrigation timer
• Soil sensor
• Thermo-hygro sensor
• Operating instructions

¹NOTE: Use this function only under supervision
