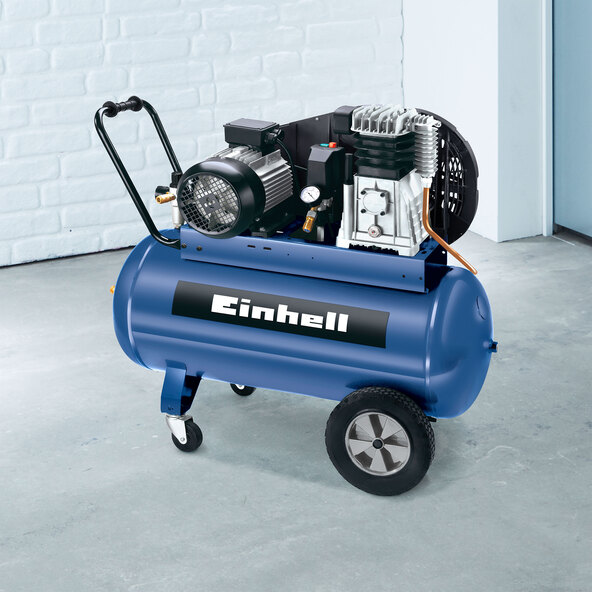

This compressor delivers pressure

But only good pressure. Whether for cleaning, inflating, or spraying: this compressed air compressor provides optimal support for your DIY projects. • High durability of up to 4,000 operating hours thanks to oil lubrication • Powerful 10 bar operating pressure for dynamic drive • High compressor performance thanks to a full 100-liter tank volume • Easy handling thanks to wheels and casters Full power in every area Whether you need to quickly inflate car tires or connect a paint gun, your air compressor is used in a wide variety of applications and delivers powerful performance. It's incredibly easy to use: simply connect it to your compatible compressed air tool and you're ready to go. With an intake capacity of 480 liters of air per second, you work quickly and efficiently. Additionally, the filter pressure reducer cleans the regulated compressed air of condensation, which is necessary, for example, during your painting work.

Far from being unwieldy!

Your air compressor doesn't have to stay in your workshop. Thanks to its large wheels, it's mobile and can be moved to almost any location as needed. Challenging tasks are a breeze. Quick-release couplings allow you to access the tank pressure or a lower, regulated working pressure at any time – there are even two quick-release couplings available.

Your Einhell compressor not only makes a good impression but also reliably supports you in even the most demanding tasks – with up to approximately 4,000 operating hours.

Features:

• Metal filter pressure reducer with condensate separator
• 2-cylinder air compressor
• Belt drive
• Pressure switch
• Manometer and quick-release coupling for unregulated tank pressure
• 1 manometer and 2 quick-release couplings for regulated working pressure
• Check valve
• Safety valve
• 2 swivel casters and 2 large wheels
• 10-year warranty against tank corrosion
• Oil lubrication ensures longevity (4,000 operating hours)

Technical data:

• Mains connection: 400 V 3~ 50 Hz three-phase
• Motor power: 3.0 kW S3 75 % (4 HP)
• Speed (motor): 2,850 min^-1
• Suction capacity: 480 l/min
• Discharge capacity at 0 bar: 389 l/min; at 4 bar: 348 l/min; at 7 bar: 308 l/min
• Boiler capacity: 100 l
• Operating pressure: max. 10 bar
• Number of cylinders: 2

Dimensions/Weight:

• W x H x D: approx. 109.5 x 38 x 96.5 cm
• Approx. 72.1 kg

Scope of delivery:

• Einhell BT-AC 480/100/10 D compressor
• Intake air filter
• 2 wheels
• Swivel caster
• Carrying handle
• Oil plug
• 4 screws for handle mounting
• 2 screws
• 8 washers
• 2 nuts for roller mounting
• 2 axle bolts
• 2 spring washers
• 2 nuts for axle mounting
• Operating instructions

Instruction manual
