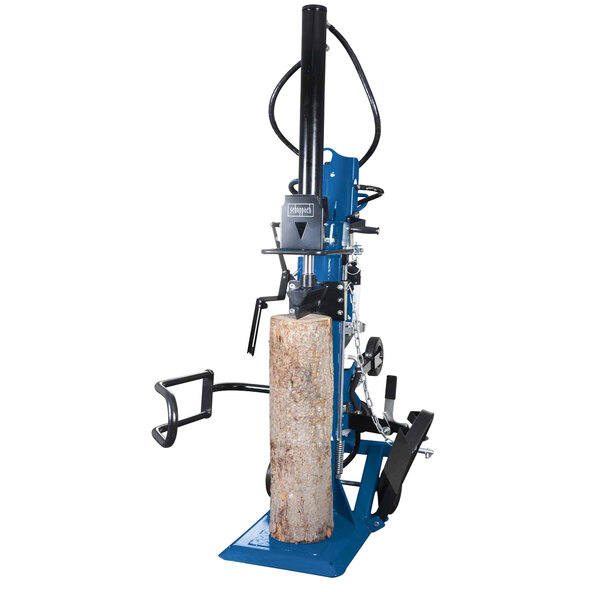

Log splitter for large logs

The SCHEPPACH HL300GM log splitter offers a splitting force of up to 30 tons and is suitable for splitting logs up to approximately 110 cm in length. Thanks to its 5,500 W motor and PTO drive, it can handle even larger logs. The adjustable base plate, log lifter, and foldable support arm facilitate transport and storage. With its three-point linkage and large wheels, the splitter is also easily mobile.

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• Splitting force: max. 30 t
• Motor power: 5,500 W
• Splitting length up to approx. 110 cm
• Suitable for hardwood and softwood
• Material: Torsion-resistant, powder-coated steel construction
• Adjustable splitting stroke

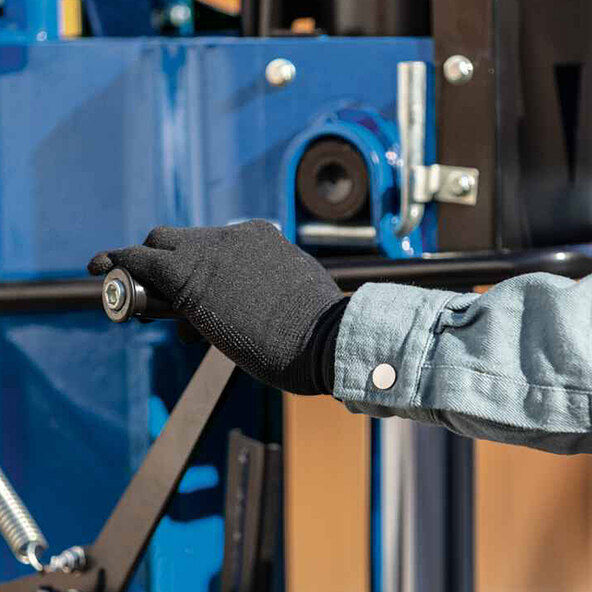

• Two-hand operation

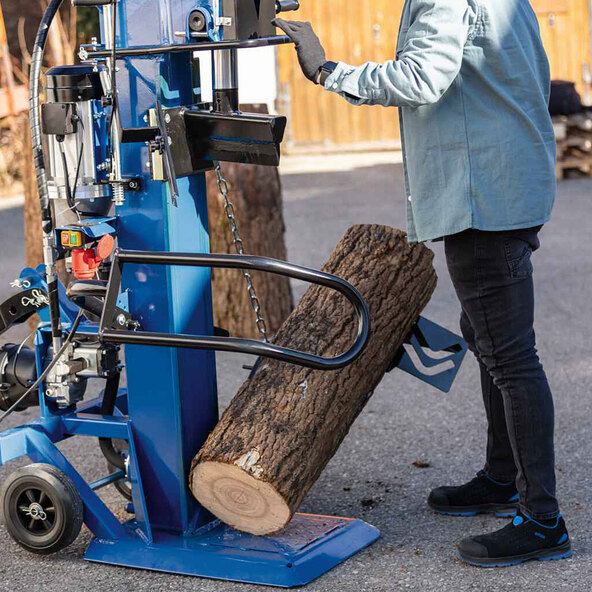

• Low base plate facilitates log loading
• Space-saving: lowerable cylinder and foldable support arms

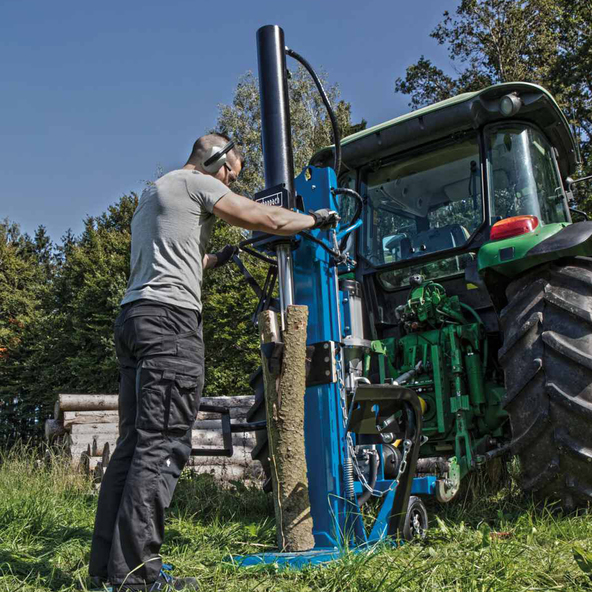

• Three-point linkage and large wheels for mobile use
• 400 V power connection
• PTO shaft drive
• Incl. Catching bracket, fixing device and log lifter

Dimensions/Weight:

• L x W x H: approx. 98 x 68 x 195 cm
• Approx. 382 kg

Scope of delivery:

• SCHEPPACH log splitter HL300GM
• 1 x holding arm
• 1 x log lifter
• 1 x holding hook
• 1 x PTO shaft protection cup
• 1 x storage bag
• 1 x additional transport wheel
• Operating instructions

ATTENTION: Please observe the safety instructions in the operating manual.

Operating Instructions
