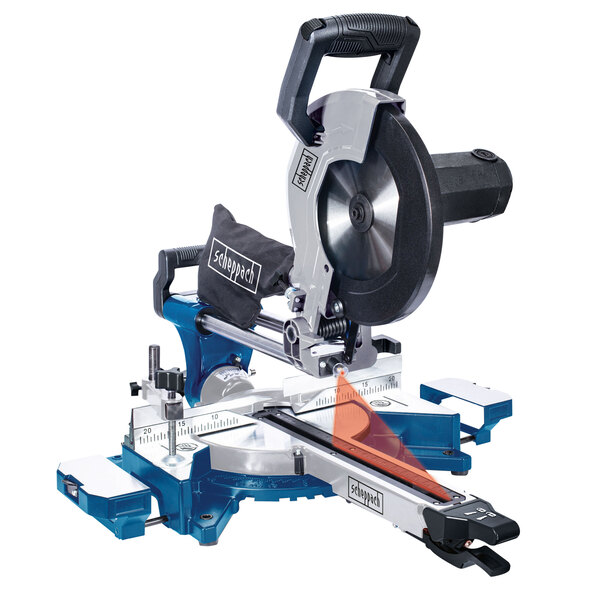

As versatile as your projects

Your saw is a miter saw, pull saw and compound miter saw in one, making it an indispensable part of your hobby workshop. Thanks to its multifunctional saw blade, it meets even the highest demands, allowing you to unleash your creativity. Effortlessly process a wide variety of materials thanks to the 2254 mm saw blade with various cutting speeds. Flexible working with a swiveling turntable and tilting saw head. Compact and robust saw weighing a mere 13.6 kg and featuring a die-cast aluminum construction. Optimal cutting results thanks to the double column guide and integrated laser. Precise sawing on the fold-out workpiece stop with screw clamp system. Excellent sawing performance. The Scheppach miter saw is impressive across the board, having received the WORLD TOOL AWARD 2021 in the miter saw category for its precise performance and high quality. Your new tool truly shines at home as a compact all-rounder. With its powerful 2,000-watt motor, you can cut not only hardwood, but also wood riddled with nails or even aluminum like a pro. Thanks to two cutting speeds, your saw blade can be adjusted to different materials. This allows you to complete your projects quickly and efficiently without having to change the blade. Angled cuts only by design. Your miter saw enables precise cuts thanks to its integrated laser. The extendable workpiece supports and die-cast aluminum screw clamps allow for even more accurate positioning. In its miter saw function, your machine has a swivel range of -45° to +45° for a wide variety of angled cuts. With a tilting saw head and swiveling turntable, this is even more flexible. Cut objects up to 340 mm wide and 90 mm high with your robust compound miter saw, exactly as you like.

CAUTION: Please observe the safety instructions in the user manual.

Features:

• Compact compound miter saw for precise work on nail-studded wood, plastic, copper, aluminum, and steel
• Two cutting speeds
• High cutting capacity of 340 x 90 mm
• Turntable with a free swivel range of -45° to +45°
• Tilting saw blade up to 45° to the left
• Multifunctional saw blade with Ø 254 mm and 28 teeth
• Clamping system for a secure hold
• Stable and lightweight die-cast aluminum construction
• Double column guide for consistent, precise cutting results
• Two extendable workpiece supports
• High, fold-out workpiece stop with centimeter scale made of die-cast aluminum
• Built-in laser for precise cuts along the indicated cutting edge
• Consistent and precise cutting results
• Fully enclosed die-cast aluminum saw blade guard for maximum work safety
• Easy transport thanks to carrying handle

Technical data:

• Cutting setting: Width approx. 340 mm, Height approx. 90 mm
• Saw blade diameter: 254 mm (28 teeth)
• Saw blade speed: 1st gear approx. 3,200 rpm, 2nd gear: approx. 4,500 rpm min^-1
• Swivel range: -45°/0°/+45°
• Miter cut: 0° to 45° to the left
• Cutting width 90°: 340 x 90 mm
• Cutting width 45°: 240 x 90 mm
• Cutting width 2 x 45° (double miter cut): 240 x 45 mm
• Laser class 2
• AC motor: 220–240 V~/50 Hz
• Motor power: 2,000 W

Dimensions/Weight:

• L x W x H: approx. 81.5 x 48 x 40 cm
• Approx. 13.6 kg

Scope of delivery:

• Scheppach HM110 MP miter saw
• 1 x clamping device
• 2 x workpiece supports
• chip collection bag
• 6 mm Allen key
• Operating instructions

ATTENTION: Please observe the safety instructions in the operating instructions.
