Precise cuts made easy

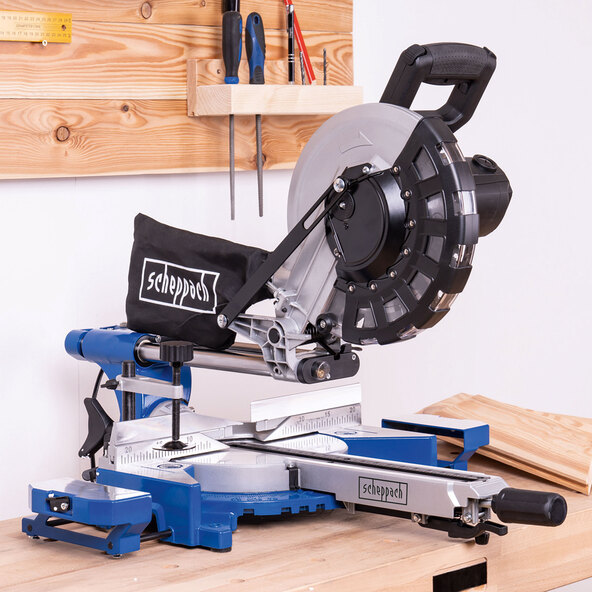

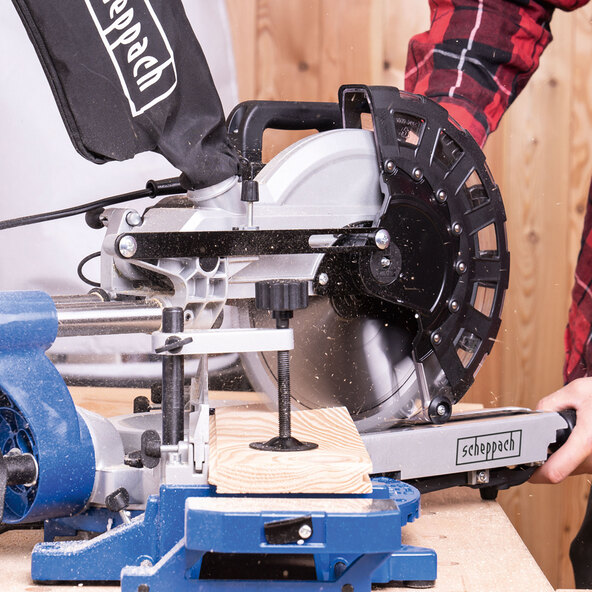

The Scheppach HM254 compound miter saw is the ideal choice for demanding work in the hobby workshop. Equipped with a 2,000 W motor, double column guide, and a tilting saw blade, it enables ideal crosscuts and miter cuts in wood and plastic. Thanks to the integrated laser, the cutting edge can be precisely indicated. The lightweight die-cast aluminum frame makes the saw easy to transport, and its compact design means it fits even in small workshops.

CAUTION: Please observe the safety instructions in the operating manual.

Features:

• Compact and pull saw for demanding cuts
• Motor: 2,000 W, 220–240 V~ / 50 Hz
• Motor speed: approx. 4,500 rpm
• Robust double column guide for cross and miter cuts
• HW saw blade with 60 teeth
• Turntable for precise adjustments
• Tip angle: 1 x approx. 45° left
• Miter angle: -45° to +45°
• Adjustable cutting angles: approx. 90° / 90°; approx. 90° / 45°; approx. 45° / 90°; approx. 45° / 45°
• Saw blade tilts approx. 45° for flexible cuts
• Fully enclosed saw blade guard
• Soft start for smooth start-up
• Robust, lightweight die-cast aluminum frame
• Suitable for hardwoods and softwoods as well as common plastics
• Easy transport
• Compact design, ideal for small workshops
• Integrated laser for precise cutting guidance

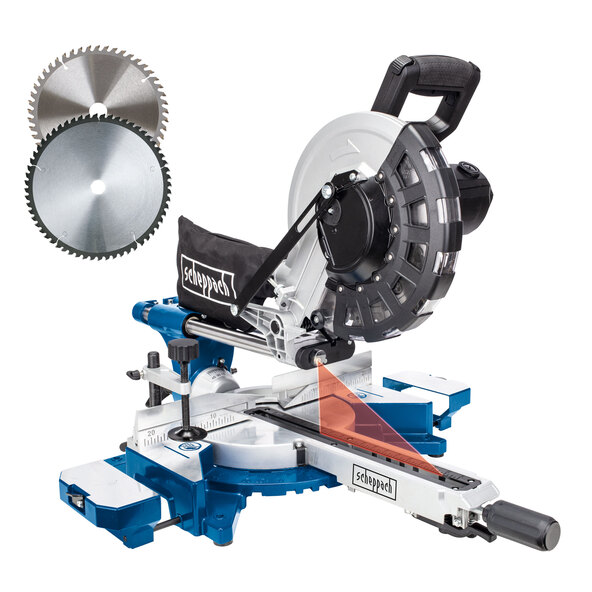

• Incl. 48 Z and 60 Z HW saw blade

Dimensions/weight:

• L x W x H: approx. 77 x 59.5 x 59 cm
• Saw blade, Ø: approx. 25.5 cm
• Turntable, Ø: approx. 24.8 cm
• Cutting width/height at 90° / 90°: approx. 34 x 9 cm
• Cutting width/height at 90° / 45°: approx. 24 x 9 cm
• Cutting width/height at 45° / 90°: approx. 34 x 4.5 cm
• Cutting width/height at 45° / 45°: approx. 24 x 4.5 cm
• Approx. 14.3 kg

Scope of delivery:

• SCHEPPACH HM254 miter saw
• 1 x clamping device (pre-assembled)
• 2 x workpiece supports (pre-assembled)
• 1 x chip collection bag
• 1 x 6 mm Allen key
• 1 x 3 mm Allen key
• 1 x 48T carbide saw blade
• 1 x 60T carbide saw blade
• Operating instructions

ATTENTION: Please observe the safety instructions in the operating manual.
