Powerful, flexible compound miter saw

With the Scheppach HM90MP, you'll always get a good cut. It allows you to quickly and evenly cut not only softwood or hardwood, but also a wide variety of materials such as wood studded with nails, plastics, copper, aluminum, and steel to size. The handy sliding compound miter saw has a carrying handle on the back for easy transport. 2 cutting speeds for optimal adjustment to a wide variety of materials. Cutting capacity of 34 x 6.5 cm and a 1,700 W motor. Multifunctional saw blade - diameter: approx. 21.6 cm with 24 teeth. Screw clamp system: stable workpiece hold for all crosscuts, sliding, and miter cuts. Integrated laser for precise indication of the cutting edge. Universal tool with many functions. With your new saw, you can precisely cut a wide variety of materials using the 32.6 cm multifunctional saw blade. The two cutting speeds allow you to adapt the saw to different materials without changing the blade. The powerful 1,700 W motor is more than up to the task of using this multi-functional tool. The multi-tool saw not only performs crosscuts but also pull cuts and miter cuts. This ensures you're perfectly equipped for your DIY projects, whether at home or on the construction site, and protected by the die-cast aluminum blade guard. To prevent your workpiece from slipping, your universal saw features an integrated clamping system that provides a secure hold. Additionally, it includes two extendable die-cast aluminum workpiece supports and, if needed, a fold-out workpiece stop for greater cutting precision. For bevel cuts and miter angles, you can adjust the swivel range from -45° to +45°, with several detents allowing you to easily lock common angles in place. An LED light provides a clear view of the cutting edge, and the integrated laser allows for even more precise and accurate work.

ATTENTION: Please observe the safety instructions in the operating manual.

Features:

• Compact miter saw for precise work on various materials from softwood to steel
• Clamping system for stable workpiece support
• High workpiece stop made of die-cast aluminum
• 2 extendable workpiece supports made of die-cast aluminum with integrated and fold-out workpiece stop
• Durable saw blade guard made of die-cast aluminum

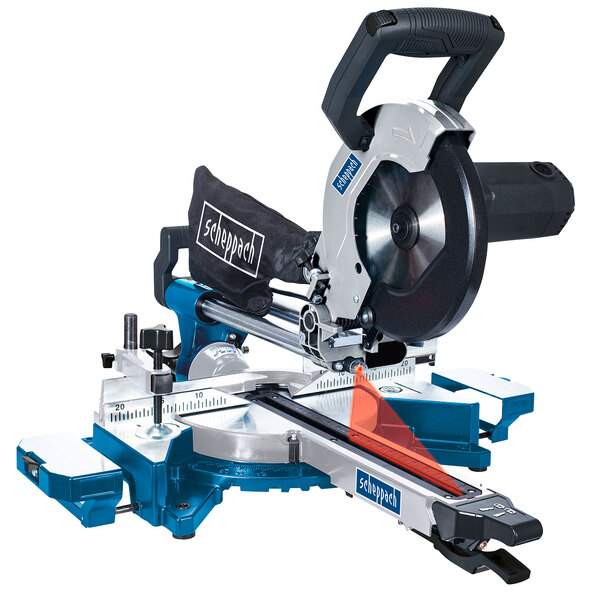

• Integrated laser for precise indication of the cutting edge
• Stable double column guide for precise cuts in wood, plastic, copper, aluminum, and steel
• Carrying handle on the back for easy transport

Technical Specifications:

• Motor: 220–240 V~/50 Hz
• Rated power: 1,700 W
• No-load speed: 1st gear: 3,200 rpm, 2nd gear: 4,500 rpm
• Carbide saw blade (Ø x ø x H): approx. 216 x 30 x 2 mm
• Number of teeth: 24

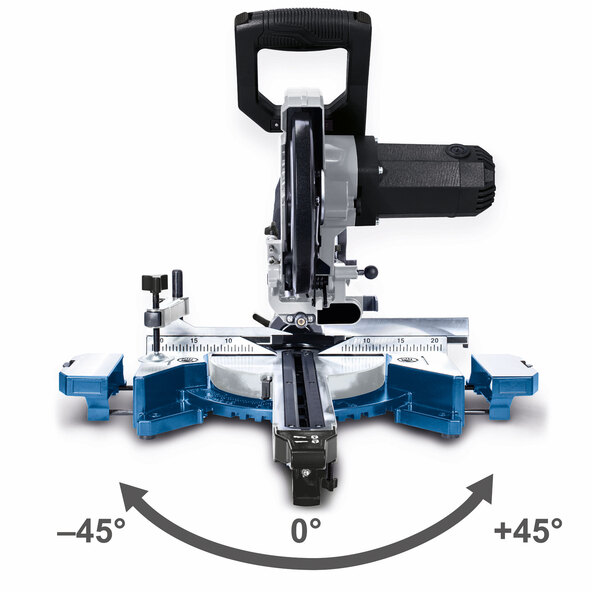

• Swivel range: ±45°

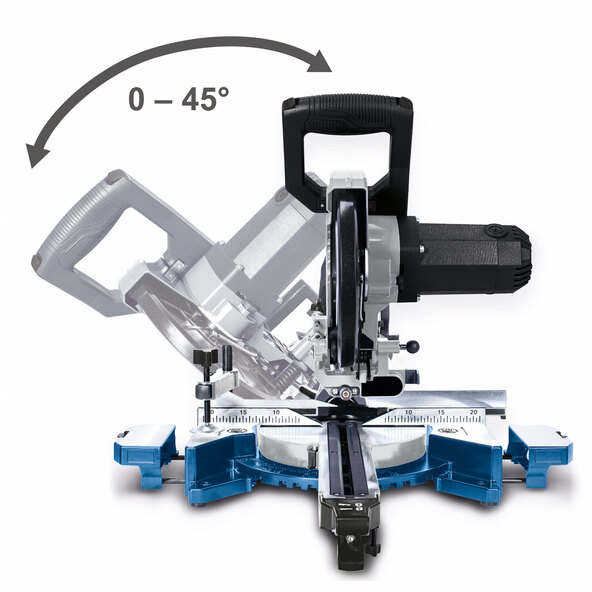

• Bevel cut: 0–45° to the left
• Cutting width at 90°: 340 x 65 mm
• Cutting width at 45°: 240 x 65 mm
• Cutting width at 2 x 45° (double bevel cut): 240 x 38 mm
• Protection class: II

Dimensions/Weight:

• L x W x H: approx. 77 x 59 x 54.5 cm
• Approx. 11.6 kg

Scope of delivery:

• Scheppach HM 90 MP miter saw
• Operating instructions

ATTENTION: Please observe the safety instructions in the operating instructions.
