The ideal solar system for balconies with railings

With your new Solovoltaik balcony power plant, you generate your own electricity. The balcony power plant, using the included mounting kit, can only be installed on balconies with railings. Thanks to the compact size of the modules (approx. 116 x 77 cm each), it is suitable for many standard balconies with railings up to approx. 5 cm high. For optimal performance, a south-facing orientation of the solar modules without shading is recommended. Position the panels, inverter, and cable so that everything is protected from severe weather. Please note: An outdoor power outlet and a 30 mA residual current device (RCD) are required. Thanks to the included Wi-Fi module and a corresponding app (NEPViewer), you can conveniently monitor the system's performance and status from your smartphone or tablet. The app is available for both Android and iOS devices. Tested according to VDE-AR-N 4105:2018 (including electronic shutdown and mechanical relay shutdown in case of power failure or mains disconnection). All trademarks are the property of their respective owners.

Features:

• Solar system for grid balconies

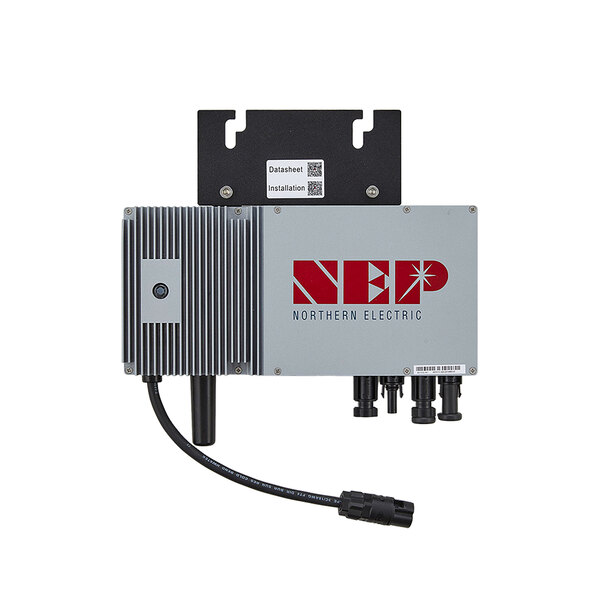

• NEP inverter, peak efficiency approx. 95.5% (CEC), maximum output power 600 W
• Incl. Mounting kit for attaching the modules and inverter to lattice balconies. WiFi module with free app function (NEPViewer) – displays system performance and status. 2 flexibly mountable solar modules (dimensions approx. 116 x 77 cm each) with PERC cell technology, 175 Wp output each, including approx. 1.5 meters of connection cable (approx. 4 mm²). NEP inverter with integrated grid protection, peak efficiency: approx. 95.5% (CEC). Tested according to VDE-AR-N 4105:2018 (including electronic shutdown and mechanical relay shutdown in case of power failure or grid disconnection). Dimensions/Weight: L x W x H: 116 x 77 x 3.5 cm cm
• Approx. 25.47 kg

Scope of delivery:

• Balcony power plant Solovoltaik SP 175/350

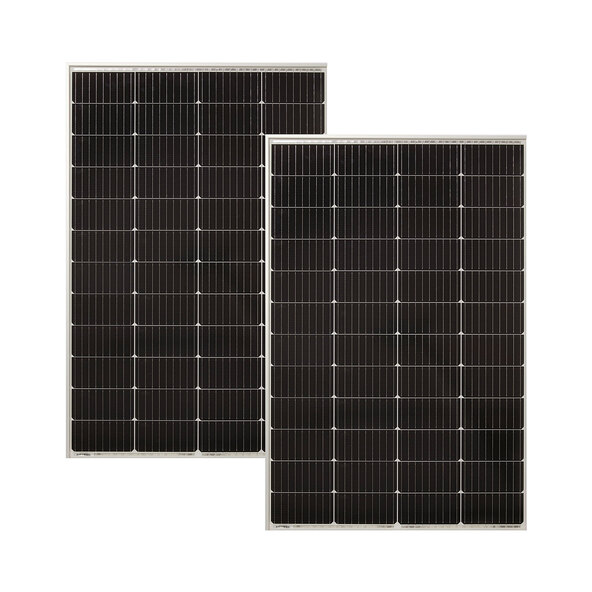

• 2 solar modules with 175Wp output each included in the set, upgradeable with 2 additional solar modules (sold separately) with 175 Wp each
• NEP inverter incl. WLAN module with free app function (NEPViewer) with up to max. 600 W (when using 4 solar modules)

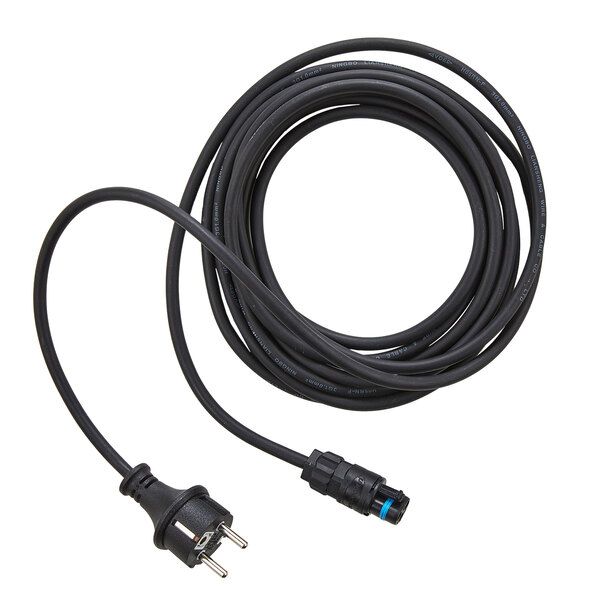

• 5 m connection cable with Schuko plug

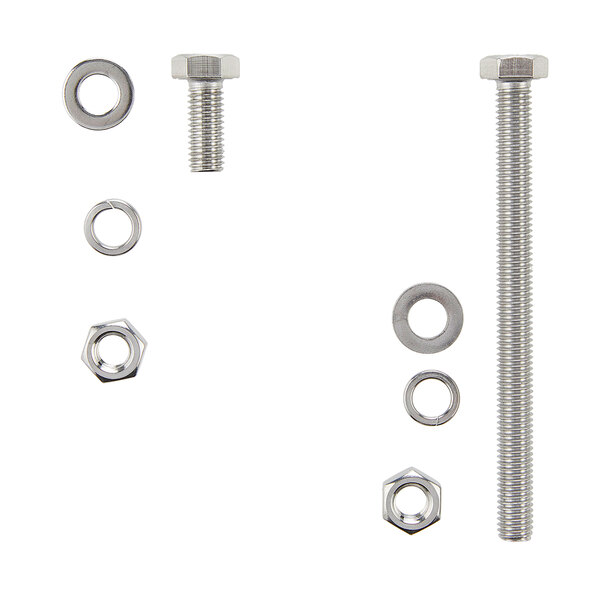

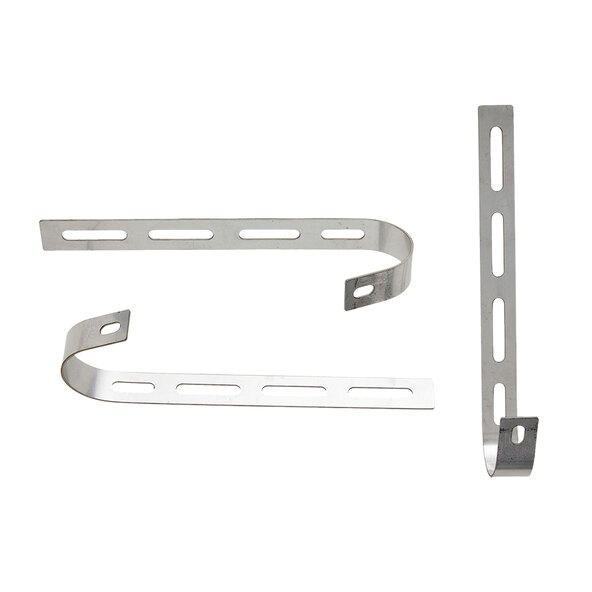

• Mounting material
• Operating instructions
