A true all-rounder

You can use the Scheppach bench drill press in a variety of ways. The machine is also very precise. Such an all-rounder is a must-have for any passionate DIY enthusiast looking for the perfect addition to their workshop.

• Pleasant and comfortable working thanks to the adjustable drill table height
• High speed and powerful motor ensure excellent drilling performance
• Compact device made of sturdy material: made of robust cast iron
• Versatile: suitable for wood, metal, and all common plastics
• Easy to read thanks to the digital speed display

Drill precisely with the bench drill press

Get started working immediately. The chuck accepts all common drill bit sizes from 1 to 16 mm. Thanks to the quick-release chuck, you can change drill bits without tools. The speed can also be adjusted without tools. This allows you to easily set up the bench drill for a wide variety of materials. Precision is ensured by the integrated laser. A display on the front shows you the current speed, so you're always informed.

Powerful Bench Drill

The Scheppach bench drill would be nothing without its powerful motor. With 550 W, it provides plenty of power for DIY projects. Thanks to its robust and compact construction made of high-quality cast iron, the bench drill stands optimally and securely on your work surface. For comfortable working, the drill is height-adjustable, allowing you to perfectly adapt it to the workpiece.

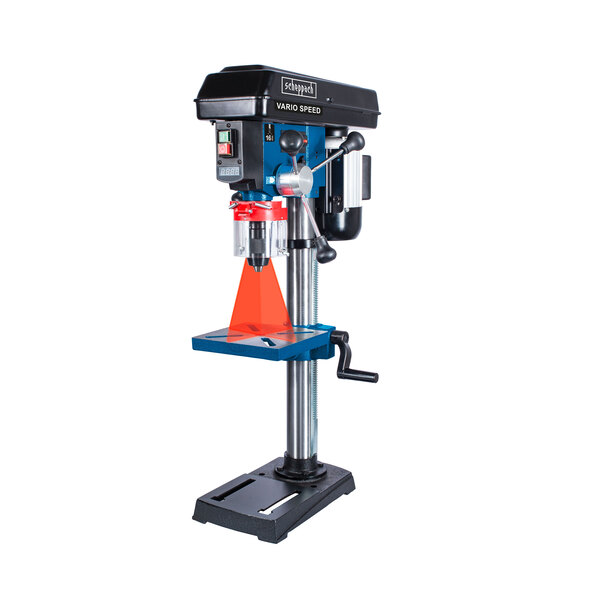

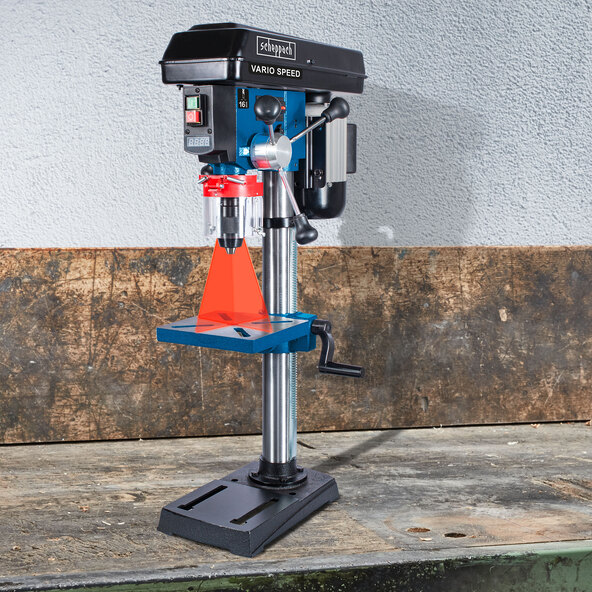

The Scheppach DP19Vario pillar drill impresses with its versatile application and powerful motor. The next project can begin.

ATTENTION: Please observe the instructions for safe use of the device as described in the operating manual!

Features:

• Infinitely variable speed control, adjustable without tools
• Digital speed display
• Quick-release chuck as standard
• Robust, compact cast iron construction
• Powerful 550 W motor
• Height-adjustable, tiltable and rotatable drill table including extendable workpiece support
• Chuck clamping range: 1.5–16 mm
• Max. distance chuck to table: approx. 350 mm
• Max. Distance from chuck to base: approx. 465 mm
• Infinitely variable speed control from 440 to 2,580 rpm for wood, metal and all common plastics

Technical data:

• Motor: 230–240 V~ 50 Hz
• Motor speed: 1,450 rpm
• Motor power: 550 W
• Chuck mount: B16
• Chuck: 1–16 mm
• Angle adjustment: from 45 to –45°
• Spindle speed: 440–2,580 rpm
• Max. Drilling depth: approx. 60 mm Column diameter: approx. 60 mm Dimensions/Weight: L x W x H: approx. 34 x 50 x 85 cm Table size, W x L: approx. 19.8 x 19.4 cm Approx. 27.5 kg

Scope of delivery:

• Scheppach DP19Vario professional pillar drill
• Quick-release chuck
• Foldable chip guard
• Operating instructions

ATTENTION: Please observe the instructions for safe use of the device as described in the operating instructions!

Operating instructions
