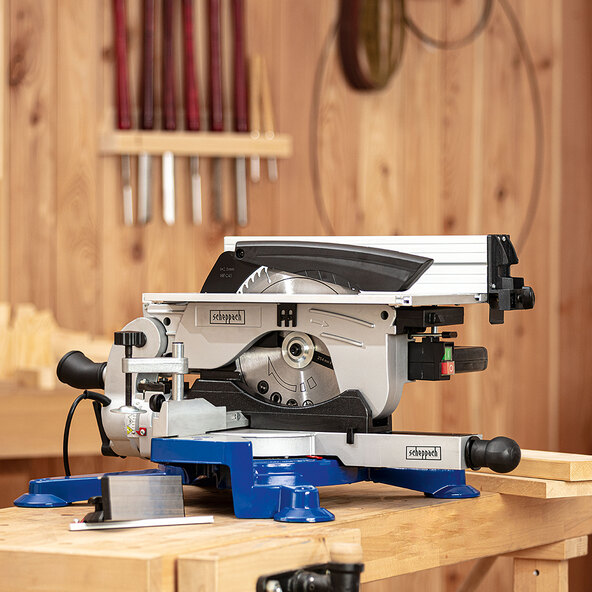

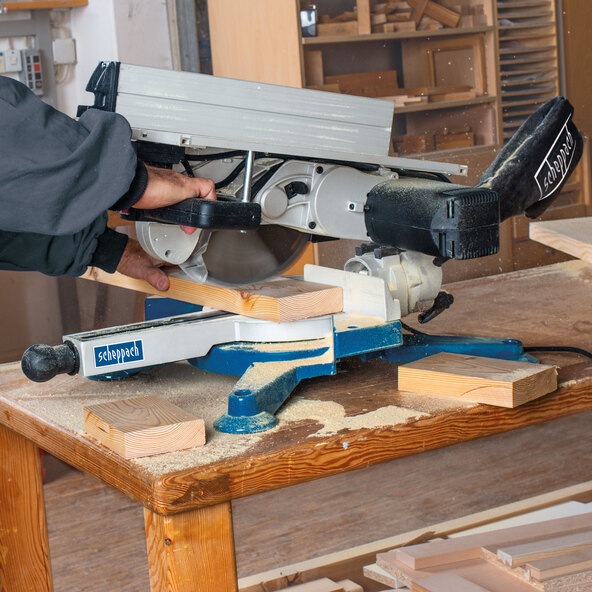

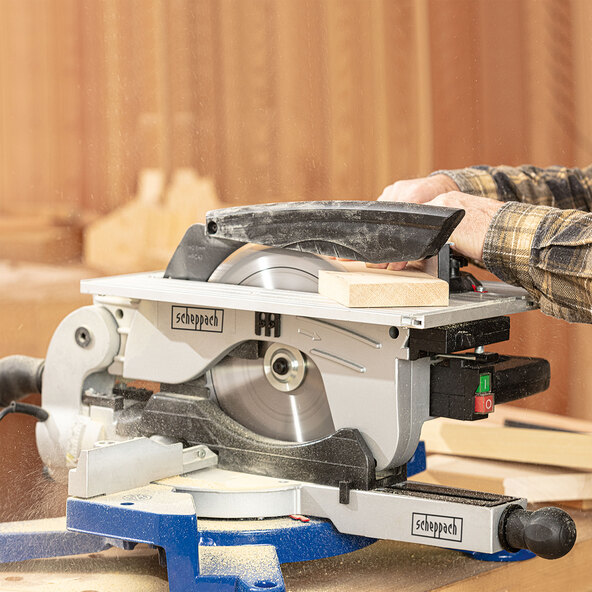

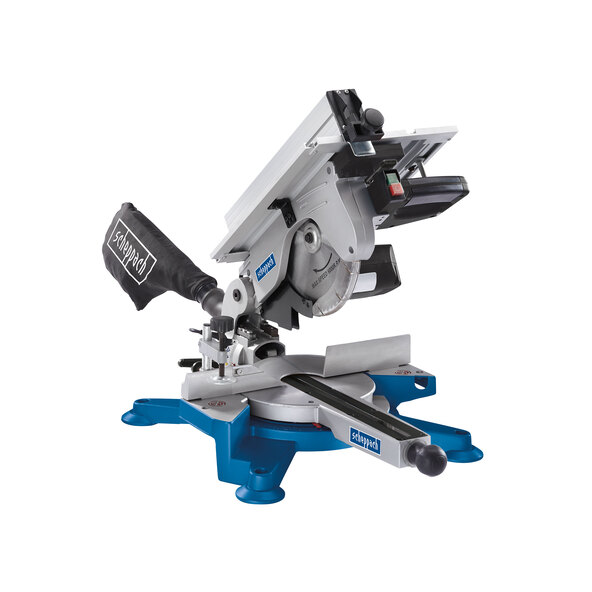

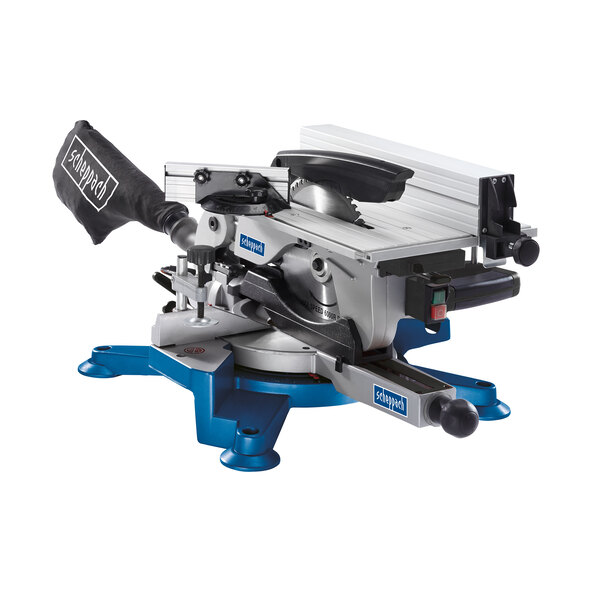

Compact multi-function saw with a powerful motor

Super compact and versatile: that's the HM100T. This powerful combination tool unites a table saw and a swiveling miter saw – for precise sawing in small spaces. Stable and easy to transport thanks to its die-cast aluminum frame. 1,800-watt motor for powerful performance. Precise, consistent cuts thanks to the 60-tooth carbide-tipped saw blade. Compact dimensions of 73 x 46.5 x 37 cm for use in small workshops. Clean work area thanks to the dust collection bag. Table saw, miter saw, and compound miter saw in one. With this combination saw, you save space in your workshop while still having all the options at your fingertips: The miter saw transforms into a handy table saw in just a few simple steps. The HM100T's 254 mm carbide-tipped saw blade ensures excellent cutting results in any position – from straight and bevel cuts to precise crosscuts and miter cuts. The 1,800-watt motor easily handles all challenges. Practical and flexible for your sawing needs: The robust die-cast aluminum frame of the multi-function saw stands securely on tables and workbenches. Need more space? No problem: Weighing just under 19 kg, the HM100T is light enough to transport or move. The included dust collection bag keeps your work surface clean while you work. For extended use of the saw, you can attach an external dust extraction system¹ to the 32 mm dust port.

CAUTION: Please observe the safety instructions in the operating manual.

¹ Not included in the scope of delivery.

Features:

• Use as a miter saw, chop saw and table saw
• Robust and lightweight die-cast aluminum frame
• Powerful 1,800 W motor
• Compact dimensions
• 254 mm carbide-tipped saw blade with 60 teeth
• Stable and torsion-resistant construction
• Dust collection bag

Technical Specifications:

• AC motor 220–240 V ~ 50 Hz
• Power: 1,800 watts
• No-load speed: 5,000 rpm
• Carbide saw blade, Ø: 254 mm
• Number of teeth: 60
• Dust extraction port: 32 mm

Table saw:

• Cutting height 0–46 mm
• Riving knife thickness 2.5 mm
• Cross and parallel fence: swiveling –60° to +60°

Miter saw:

• Swivel range: –50°/0°/60°
• Bevel angle: 0 to 45°
• Sawing width and depth (90°): 110 x 70 mm
• Sawing width and depth (45°): 70 x 70 mm
• Sawing width and depth (2 x 45°, double miter cut): 70 x 40 mm
• Protection class II

Dimensions/Weight:

• L x W x H: approx. 73 x 46.5 x 37 cm
• Table saw, L x W: approx. 43.2 x 29.8 cm
• Miter saw, L x W: approx. 46 x 33.5 cm
• Approx. 19 kg

Scope of delivery:

• Scheppach HM100T table-top miter saw
• Carbide-tipped saw blade
• Dust collection bag
• 6 mm Allen key
• 3 mm Allen key
• Parallel fence
• Cross fence
• Push stick
• Operating instructions

ATTENTION: Please observe the safety instructions in the operating instructions.

Operating instructions
