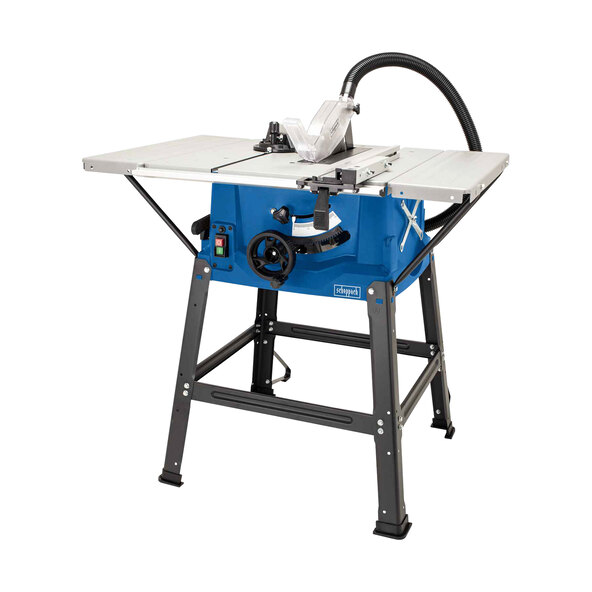

Versatile Circular Saw for DIY Enthusiasts

This compact table saw from SCHEPPACH offers solid performance for various DIY projects with a motor output of approximately 2,000 W and a saw blade diameter of approximately 25 cm. The cutting height of up to approximately 8.5 cm and the saw blade bevel adjustment of up to approximately 45° allow for precise cuts at any angle. Thanks to the table extension and non-slip rubber feet, it also provides a robust work surface in smaller spaces.

Features:

• Motor power: 2,000 W
• Saw blade diameter: approx. 25 cm
• Saw blade swivels from approx. 0–45°
• Table extension on both sides

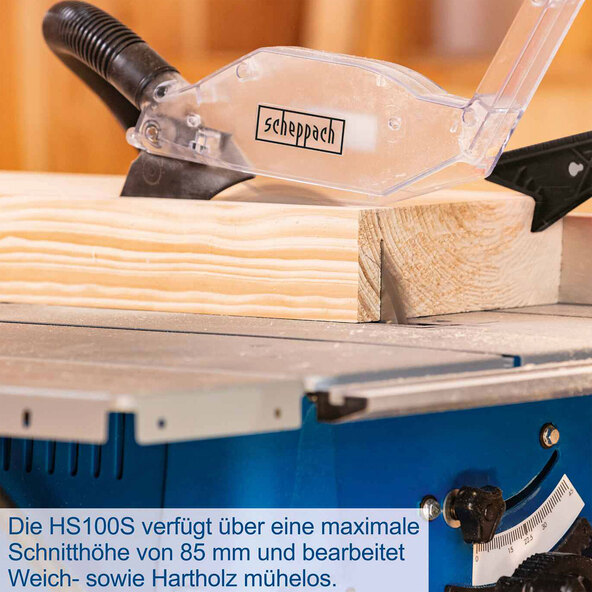

• Cutting height at 90°: approx. 8.5 cm
• Cutting height at 45°: approx. 6.5 cm
• Speed: approx. 5,000 rpm
• Height and tilt adjustment via handwheel

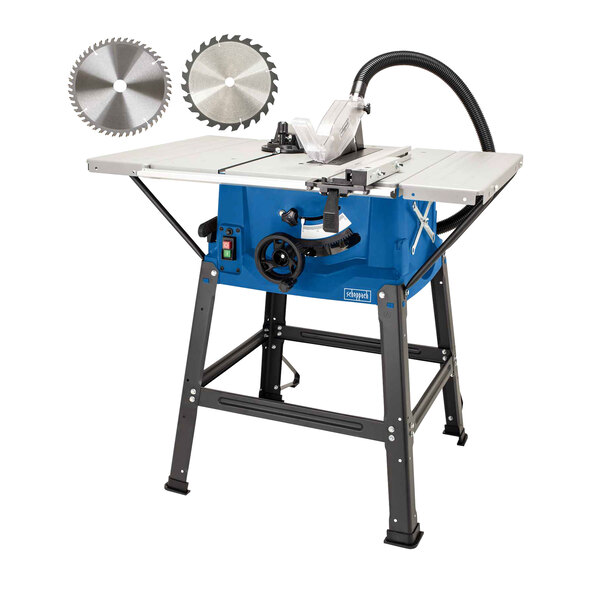

• Includes 24-tooth saw blade (pre-assembled)
• Includes 48-tooth saw blade
• Includes Saw blade guard

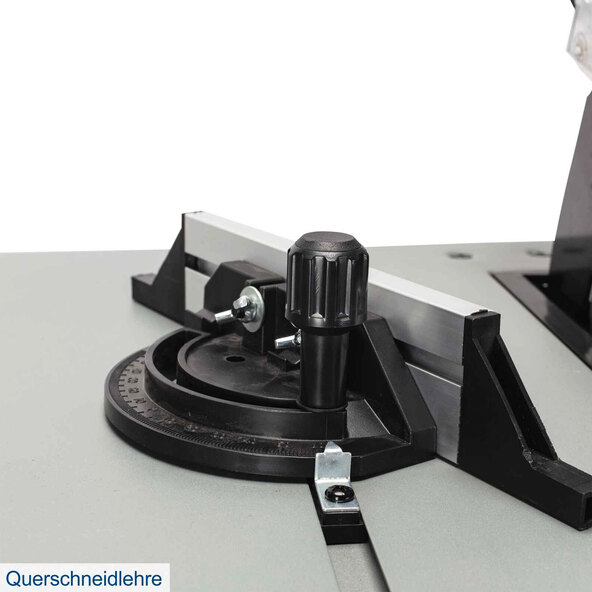

• Crosscutting guide and rip fence

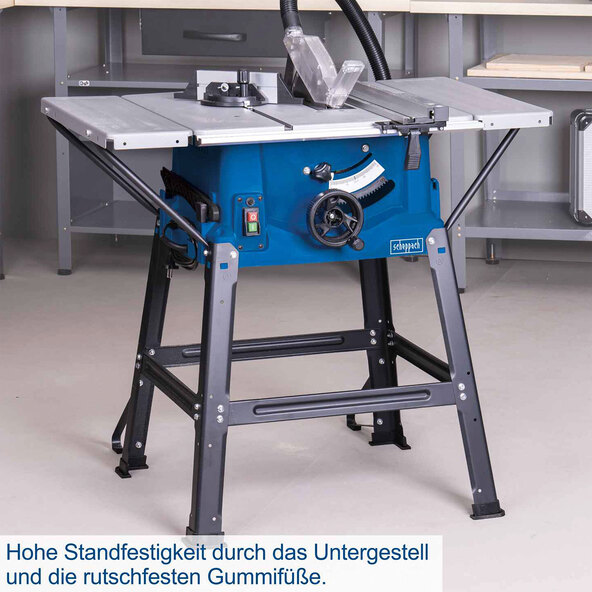

• Non-slip rubber feet

Dimensions/Weight:

• Table dimensions, L x W x H: approx. 56.3 x 58.3 x 83 cm
• Total, L x W x H: approx. 89.4 x 63 x 103 cm
• Approx. 23 kg

Scope of delivery:

• SCHEPPACH table saw HS100S
• 1 x saw blade Ø 250 mm, 24 teeth (pre-mounted)
• 1 x saw blade Ø 250 mm, 48 teeth
• 4 x legs
• 2 x center brace, long
• 2 x center brace, short
• 2 x support brace, long
• 2 x support brace, short
• 4 x cross brace
• 2 x stand brackets
• 2 x table extensions
• 4 x rubber feet
• 1 x parallel fence
• 1 x saw blade guard
• 1 x crosscut fence
• 1 x dust extraction hose 1 x Push stick 1 x Saw blade wrench, 10/21 mm 1 x Saw blade wrench, 10/13 mm 32 x Hex screws 24 x Hex nuts 1 x Riving knife
