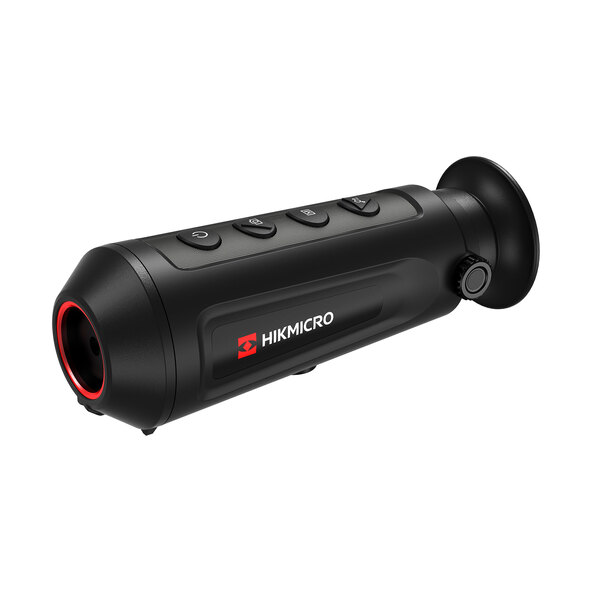

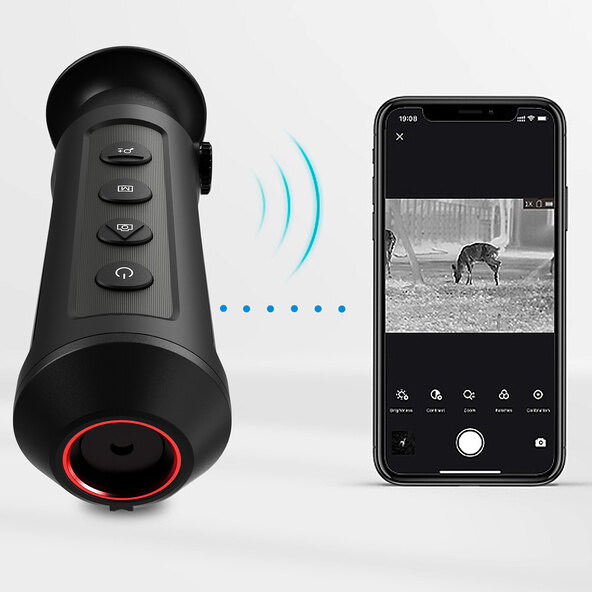

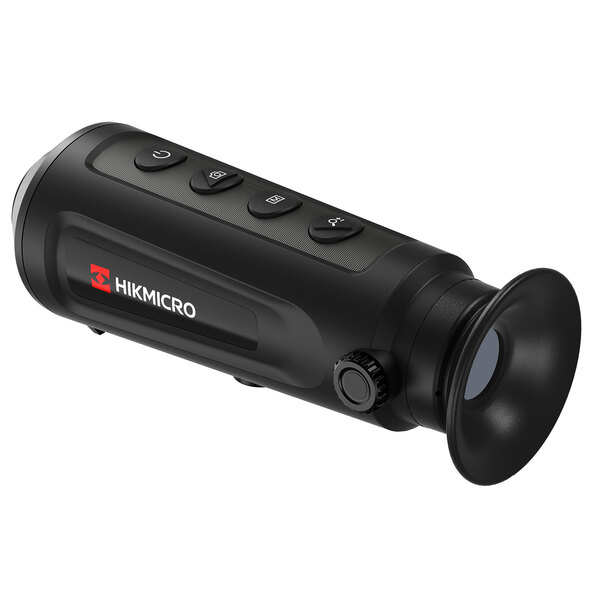

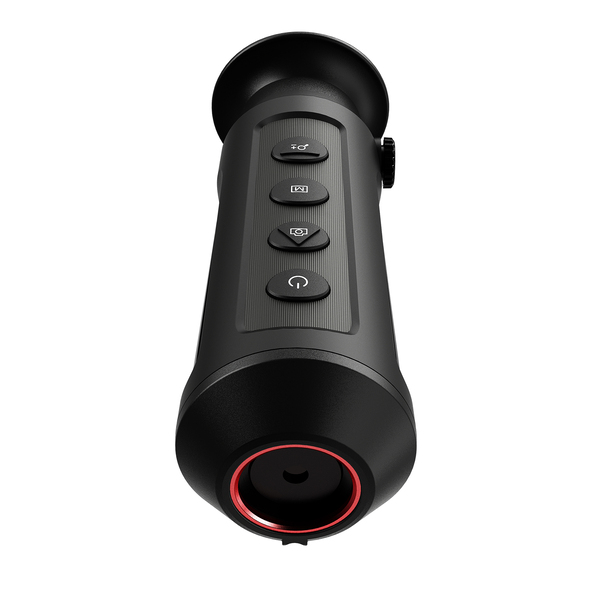

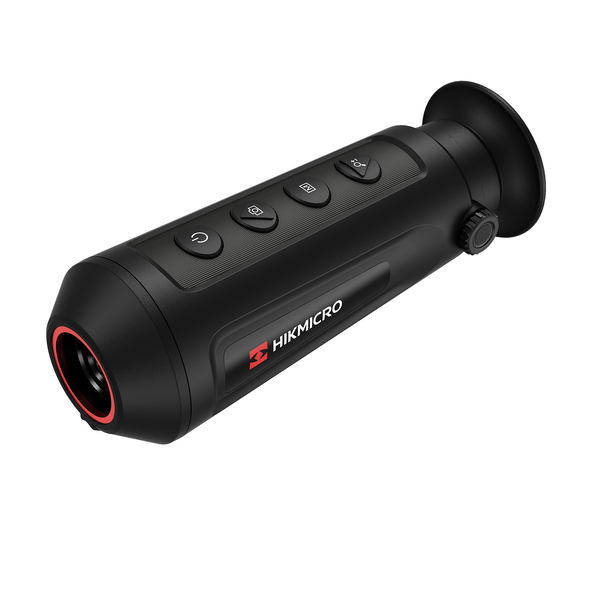

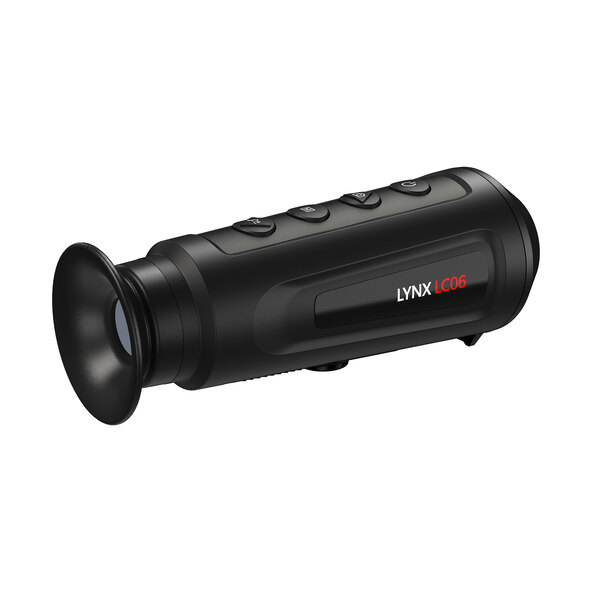

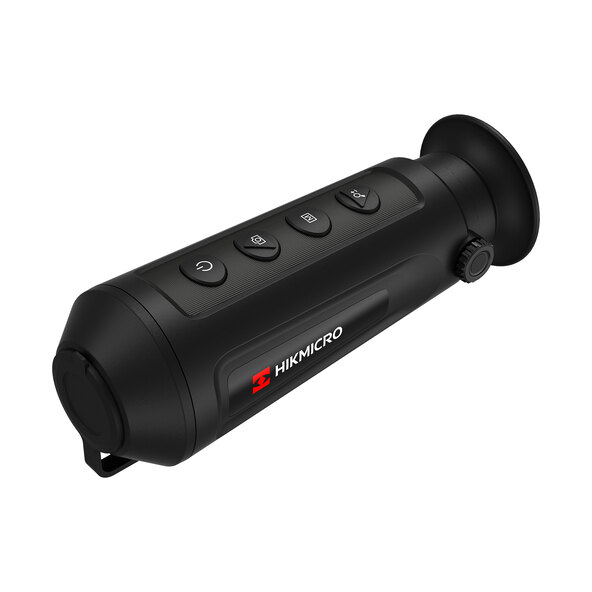

Clear vision in the dark. With the LYNX LC06, you're perfectly equipped for nighttime adventures, nature explorations, and checks around the house. This compact thermal imaging camera shows you objects thanks to its digital zoom with up to 4x magnification. The highly sensitive 160 x 120 infrared detector detects heat sources at distances of up to 219 m. Features like hot target tracking and distance measurement provide practical support. Capture your discoveries directly as images or videos with the LYNX LC06. You can conveniently operate the camera via smartphone or tablet using Wi-Fi and an app.
Features:
- Thermal monocular
- 0.2" display with 720 x 540 px resolution
- Diopter adjustment knob
- Optimal thermal imaging processing technology
- Rechargeable Li-ion battery for up to 10 hours of operation
- Intelligent range measurement
- 4 color palettes
- Large 4x digital zoom
- Standby mode
- Single image and video mode
- Integrated memory module (8 GB)
- Wi-Fi hotspot
- Waterproof and shockproof
- Type-C interface
Technical specifications:
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 160 x 120
- Frame Rate: 50 Hz
- Pixel Interval: 17 μm
- Response Wavelength Range: 8 μm–14 μm
- NETD: Less than 35 mK (@25°C), F#=1.1
- Focal Length: 6.2 mm
- IFOV: 2.74 mrad
- Field of View: 24.7° x 18.7° (H × V)
- Aperture: F1.1
Image Display
- Monitor: 0.2", LCOS, 720 x 540

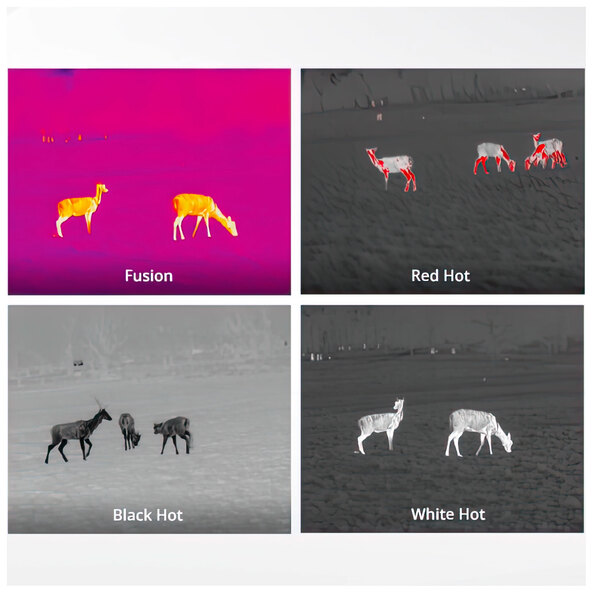

- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Digital Zoom: 1x, 2x, 4x
Smart Function
- Hot Track: Yes
- Capture Range: 219 m
System
- Storage: Integrated Memory Module (8 GB)
- Record Video: Yes
- Capture Snapshot: Yes
- Wi-Fi: Yes
- Standby Mode: Yes
Power Supply
- Battery Type: Rechargeable Lithium Battery
- Battery Life: 10 hours continuous operation with CVBS and Wi-Fi hotspot off (25°C)
- 7.5 hours continuous operation with CVBS and Wi-Fi hotspot enabled (25°C)
- Battery capacity indicator: Yes
General
- Power: 5 V DC/2 A, 1.5 W, Type-C interface
- Operating temperature: -20°C–55°C
- Humidity: 90% or less
- Protection level: IP67
Dimensions/Weight:
- L x W x H: approx. 15.83 x 6.1 x 5.7 cm
- Approx. 0.25 kg
Scope of delivery:
- HIKMICRO thermal imaging camera LYNX LC06
- Hand strap
- Charging cable (USB)
- Bag
- User manual
