Long range and high accuracy

Use your Bresser monocular indoors and outdoors to detect temperature differences via a high-quality infrared sensor in sharp resolution.

• Flexibly adaptable to individual needswith four modes and adjustable lens
• Universal applicationfor detecting a wide variety of heat sources
• Detect animals even from a great distancewith a range of up to 900 meters
• Easy handling for indoor and outdoor usethanks to its light weight and compact size
• Provide lasting documentation of observationswith recording function and USB port

High-quality infrared camera for even greater clarity

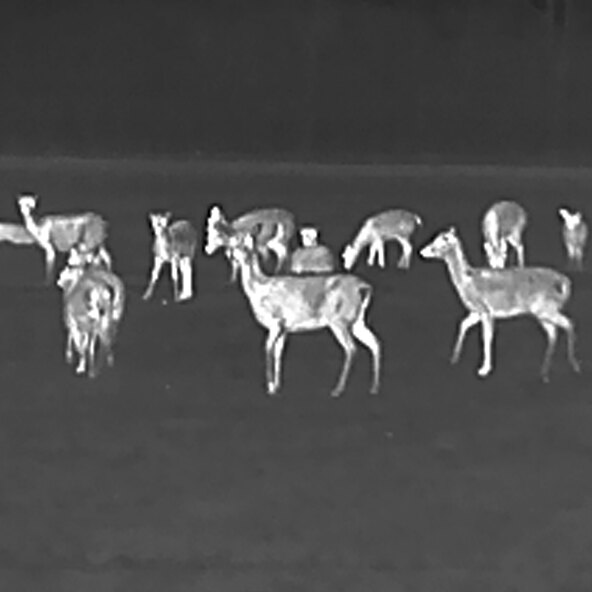

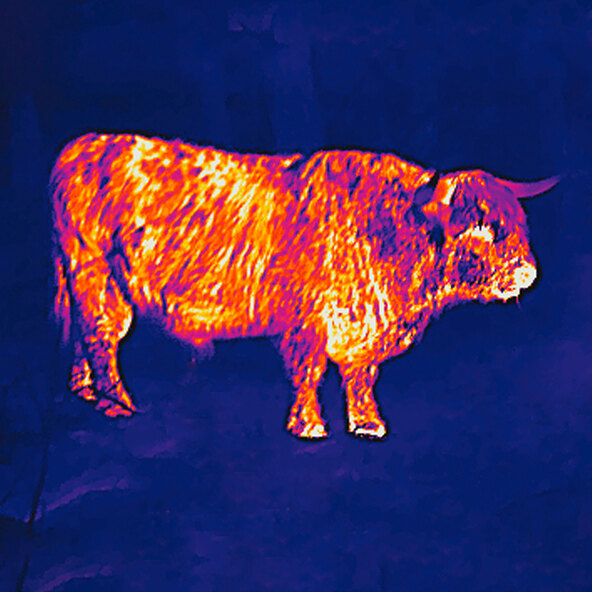

Your camera sees what you don't, because the infrared radiation, invisible to humans, reliably detects temperature differences. This allows you to identify living beings even in the dark or check the functionality of your thermal insulation. To make the details of your object even clearer, you can choose from four different color palettes. You can either highlight temperature differences in color using the rainbow mode or obtain a clear grayscale image in the black-heat mode. The long operating time of up to six hours allows you to take extended trips into nature. To document your discoveries, your lightweight device offers a photo capture function. This way, you won't miss anything on your exploration, and you can later view your pictures in more detail on your computer via the USB connection. With the zoom function of your high-quality lens, you always have your target object perfectly in view. Whether for preventative maintenance at home or outdoor activities, with your Bresser thermal imaging device, you have everything in sight. Features: Thermal night vision device For detecting wildlife, underfloor heating, geothermal energy, and leaks LCD display, 720 x 540 pixels Infrared thermal imaging sensor Adjustable lens with focus mode Status LED 4 modes (color palette): rainbow, red hot, white hot, black hot Recording function, image storage in BMP format Single eyepiece with diopter adjustment Lens cover CVBS video output port Micro-USB port

Technical specifications:

• Sensor type: uncooled focal plane
• Resolution ratio: 384 x 288 infrared focal plane
• Detection distance: approx. 900 m
• LCD resolution: 720 x 540 pixels
• Focal length: 25 mm
• Eyepiece: Display with 1 eyepiece
• Adjustable diopter correction: -3 to +1
• Field angle: 14.9 x 11.2°
• Digital zoom: 2x, 4x
• Wavelength adjustment: 8–4 μm
• Thermal image frame rate: 50 Hz

Dimensions/Weight:

• L x W x H: approx. 18.6 x 6.9 x 6.8 cm
• Approx. 440 g

Scope of delivery:

• Bresser TNS 1 thermal imaging camera
• USB cable
• Power supply (for use with USB cable)
• Instruction manual
