Long range and high accuracy

Use your BRESSER monocular camera outdoors and indoors to detect temperature differences using a high-quality infrared sensor. The thermal imaging camera is also ideal for hunting or wildlife observation, delivering impressive and fascinating images.

• For use inoutdoor and indoor areas
• With six modes and an adjustable lens – ideally adapted to individual needs
• PI technology and hot-tracking for detecting a wide variety of heat sources
• Discover animals even from a great distance with e.g. B. Up to 1,470 meters detection range for wild boars
• Document observations with recording function and USB port

Infrared camera for a clear view

I see something you don't see! Your camera sees what is normally invisible to humans. Using infrared radiation, the infrared thermometer reliably detects temperature differences. This allows you to detect living beings, for example, even in the dark, or check the effectiveness of your thermal insulation. To help you see the details of your object even better, you can choose from different color palettes. In rainbow mode, you can highlight temperature differences in color, or display a clear grayscale image in black-hot mode.

Portable night vision

Thanks to the long operating time of up to 15 hours, you can also take extended trips into nature. You can easily document your discoveries using the recording function. This way, you won't miss a single detail on your exploration. You can later view your images in more detail on your computer via the USB connection or using the app. To ensure you always have a clear view of your target, your thermal imaging camera is equipped with a practical zoom function. Very practical: Whether for identifying heat leaks in buildings or during outdoor activities, with your BRESSER TNS-2 infrared thermal imaging camera you have everything in view. Features: High-quality thermal imaging camera with 384 x 288 infrared thermal imaging sensor, NETD value: 40 mK, adjustable lens with focus mode, digital zoom: 2x, 4x, 6 modes for application-specific display: rainbow, red-hot, white-hot, black-hot, birdwatching mode, yellow coloring, PI technology for detailed and sharp images, hot tracking for identifying the hottest object, with recording function: take photos directly or via Wi-Fi. App

Technical specifications

• Sensor type: uncooled focal plane
• Resolution ratio: 384 x 288 infrared focal plane
• LCD resolution: 720 x 540
• Focal length: 25 mm
• Eyepiece: Display with 1 Eyepiece Field of view: 19.5 x 14.7°, 14.9 x 11.2°, 10.7 x 8° Digital zoom: 2x, 4x Detection range: Wild boar: approx. 1,470 m Car: approx. 2,500 m Detection range: Wild boar: approx. 367 m Car: approx. 626 m Wavelength adjustment: 8–14 μm Thermal image frame rate: 50 Hz Color palette: Rainbow, red-hot, white-hot, black-hot, birdwatching mode, yellow tint Focus mode: Adjustable Image storage: BMP Battery: Built-in rechargeable battery USB: Micro-USB Operating time: ≥15 hours Operating temperature: 0 to 45 °C Storage temperature: -20 to 60 °C Dimensions/Weight: W x H x D: approx. 18.6 x 6.9 x 6.8 cm 0.44 kg

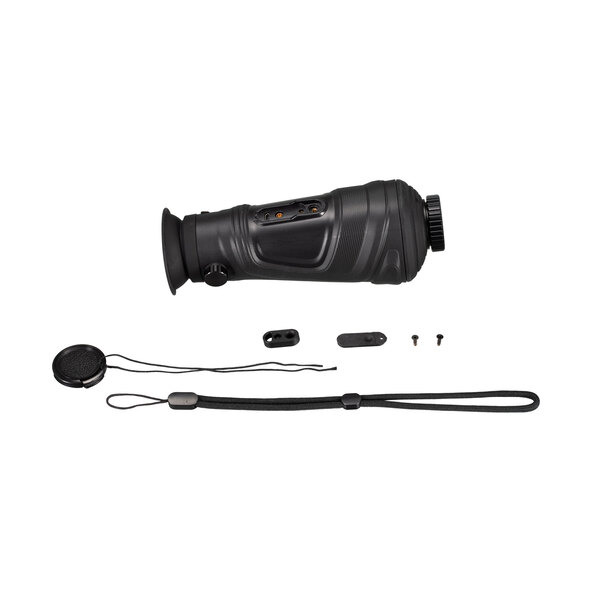

Scope of delivery:

• BRESSER thermal imaging camera TNS-2
• USB cable (Micro USB)
• Power supply (for use with USB cable)
• Bag
• User manual
• Warranty card

User manual
