Practical wet grinding system for precise work

The SCHEPPACH Tiger 5000s wet grinding system is ideal for hobby workshops and professional applications. With an integrated 150 W induction motor, it offers powerful performance with reduced vibration. The special corundum grinding wheel (approx. 20 cm) ensures consistent results, even on hard steels. Thanks to the angle gauge and the removable leather honing wheel, setting the grinding angle and polishing workpieces is easy.

Features:

• Integrated induction motor
• Motor: 230–240 V~ / 50 Hz
• Motor power: 150 W
• Speed: 115 min⁻¹
• Water tank for continuous cooling of the grinding wheel
• Harming paste for polishing the grinding pieces

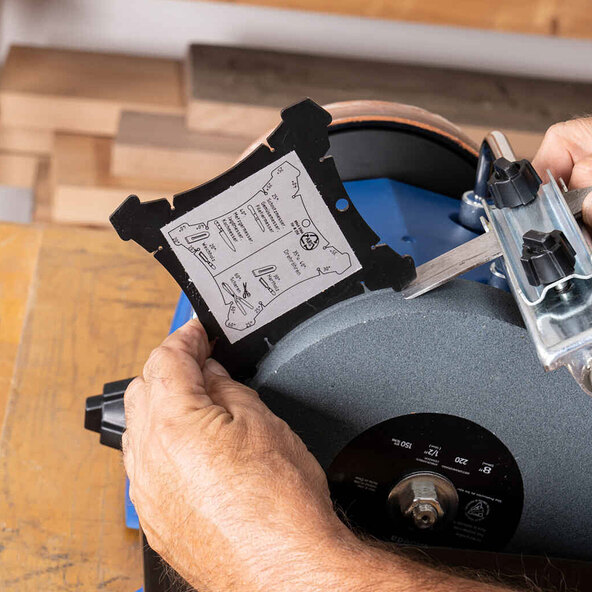

• Angle gauge for setting the correct grinding angle

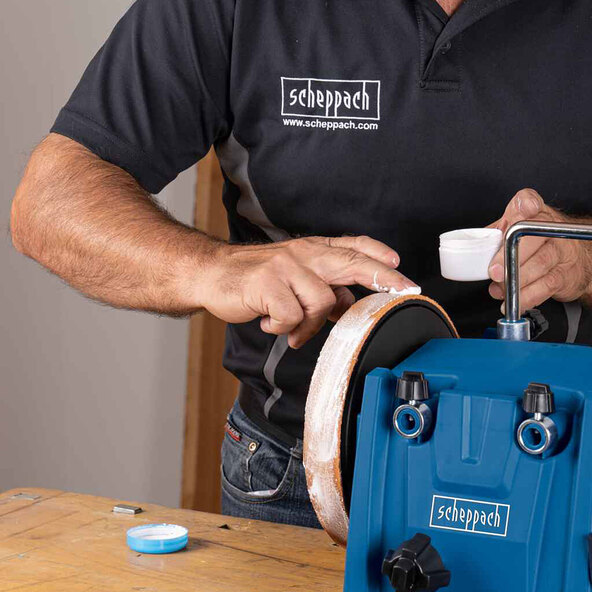

• Removable leather honing wheel for removing grinding burrs after sharpening
• Approx. 20 cm corundum grinding wheel (grit K 220)
• Incl. Universal jig for sharpening many standard tools, honing paste and angle gauge. Devices for knives and axes are available as options. Dimensions/Weight: L x W x H: approx. 29 x 33 x 27 cm. Sharpening stone, Ø x Ø x W: approx. 20 x 1.2 x 4 cm. Leather honing wheel, Ø x W: approx. 20 x 3 cm. Approx. 9 kg

Scope of delivery:

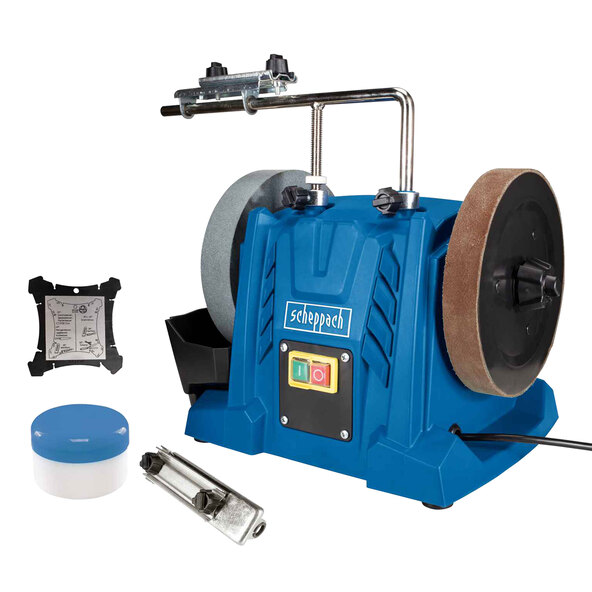

• SCHEPPACH Wet Grinding System Tiger 5000s - HOMEKIT with accessories
• 1 x Grinding stone
• 1 x Workpiece support
• 1 x Star grip screw for workpiece support
• 1 x Angle gauge
• 1 x Honing paste
• 1 x Chisel jig
• Operating instructions

Operating instructions
